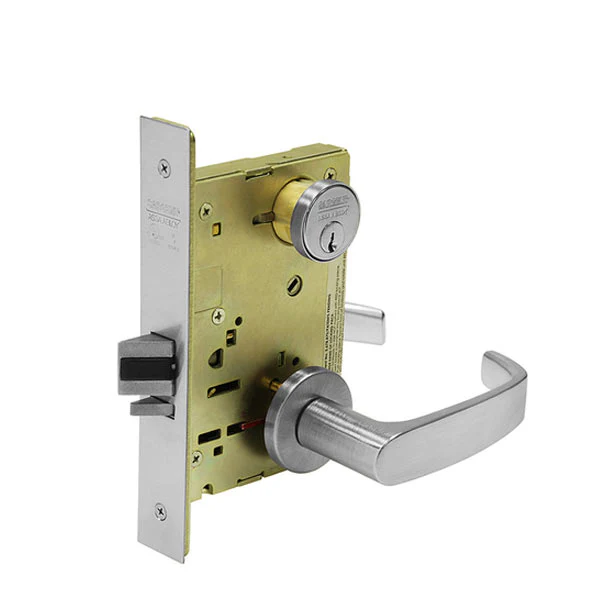

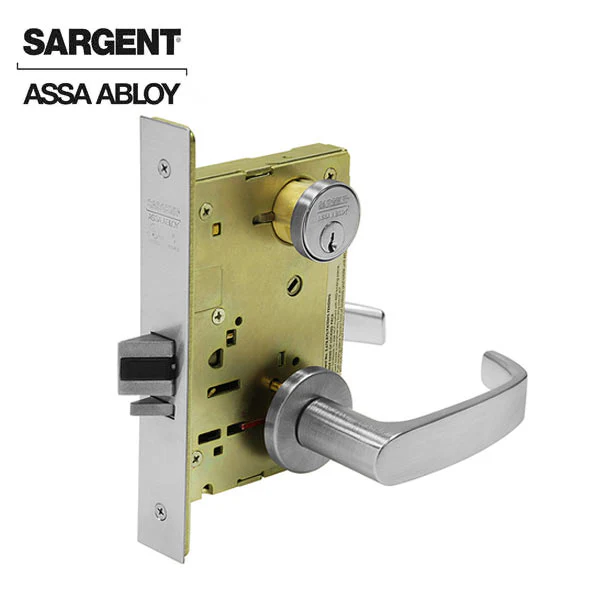

Sargent - 8204 - Mechanical Mortise Lock - LN Rose / L Lever - Storeroom - LFIC - 26D - Satin Chrome - Grade 1
The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durableāfar surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testingāfor additional resistance against vandalism and unauthorized entry.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latchbolt for easy operation
- Storeroom Function - Key outside retracts latchbolt, Trim outside always locked, trim inside always unlocked
- Comes with two Nickel Silver Keys
- Exceeds Grade 1 requirements
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - Storeroom - Outside locked/Inside Unlocked |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8āL x 1-1/4āW |
| Strike: | ANSI 1-1/4" Standard; Curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8āL x 1-1/2āW x 1-1/2āD |
| Bolt Diameter: | 3/4ā |
| Bolt Throw: | 1ā |
| Stile: | 4-3/4" |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
1-1/8" Brass LFIC |
| Keyway: | 6 or 7 Pin LFIC |
| Finish: | 26D - Satin Chrome |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
