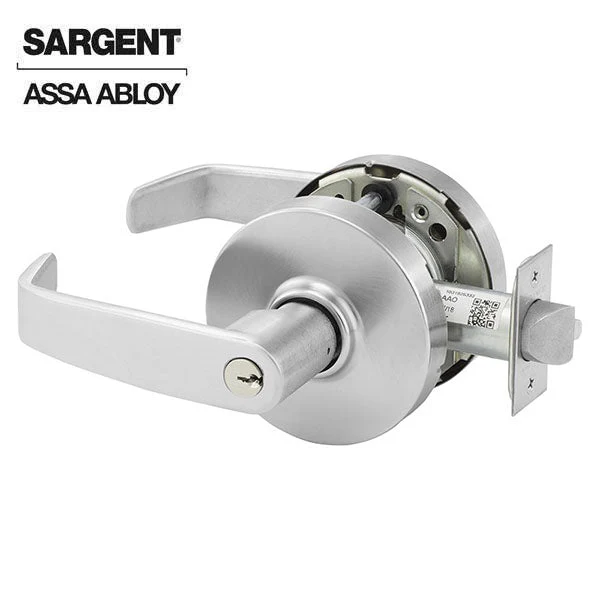

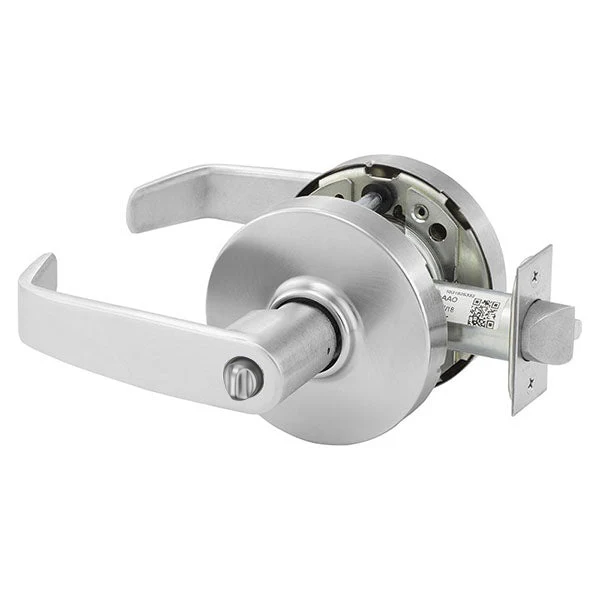

Sargent - 28FW-10G05 - 10 Line Bored Lever Lock - L Lever - - 626 - Satin Chrome - Non Handed - Grade 1

The 28FW-10G04-LL-26D is a heavy duty cylindrical key-in-lever lock designed to exceed the requirements of ANSI 156.2 Series 4000 Grade 1. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities.

Features

• ANSI/BHMA Grade 1 certified for cycle and strength requirements.

• UL-cUL listed for 3 hour fire doors and windstorm applications

• 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard 1-3/8" (35mm) thick door
• Latches are reversible, self-adjusting to door bevel

• Accepts SARGENT standard, Signature and Degree® cylinders
• Accurate alignment, smooth operation and reversibility of the lock without disassembly
  of knob and cylinder

• Versatile design to satisfy door requirements, making installation easy for new construction, as well as retrofits and renovations
• Design accommodates common door preps and satisfies all door handing
• Maintain and expand master keying systems’ versatility for multiple levels of security
• Handles virtually all interior and exterior applications
• Deadlocking latch
• ANSI/BHMA F86



Specifications

Construction:	Heavy Duty Steel
Keys	Two, nickel silver
Lock Function:	10G05 Storeroom
Door Thickness:	1-3/4" (44mm) thick door adjusts to 2" (51mm) standard 1-3/8" (35mm) thick door
Backset:	2-3/4" (70mm) backset w/ 1-1/8" front (standard)
Faceplate:	Wrought brass, bronze and stainless steel — 2-1/4" (57mm) x 1-1/8" (29mm)
Strike:	4-7/8" Curved Lip Strike
Rose & Lever:	L Lever
Cylinder:	Brass, 6 pin, LA keyway, 1 bitted standard
Finish:	626 - Satin Chrome
Certifications:	UL / cUL Listed for 3-Hour Doors,  ANSI/BHMA A156 .2 Grade 1
Warranty:	7-Year Manufacturer Warranty
