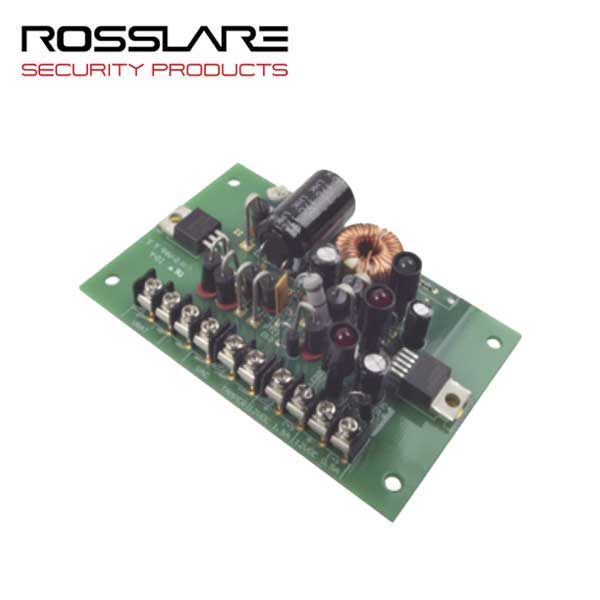

Rosslare - PC-14 - Modular board for AC215 - 12 VDC

ROS-PC-14

PCB power supply module for AC215. This acts as a back up battery in case main power supply fails.  A 12 V, 7 AH battery provides 3 hours of backup operation.

More Information Below

•


Specifications:

Input Voltage:	16 VAC, 2.42 A
Backup Battery Charger Output:	12 VDC lead acid battery up to 7 Ah
To Relay Outputs – Output Voltage 1:	12 VDC,0.5 A
To Access Control Panel – Output Voltage 2:	12 VDC, 1.5 A
Tamper Output:	Indicates faulty power
Power In (AC) – Green LED1:	Main power
Power Out (DC) – Red LED2:	Low voltage
Low Battery – Red LED3:	Backup battery low voltage



Downloads:

• User Manual
