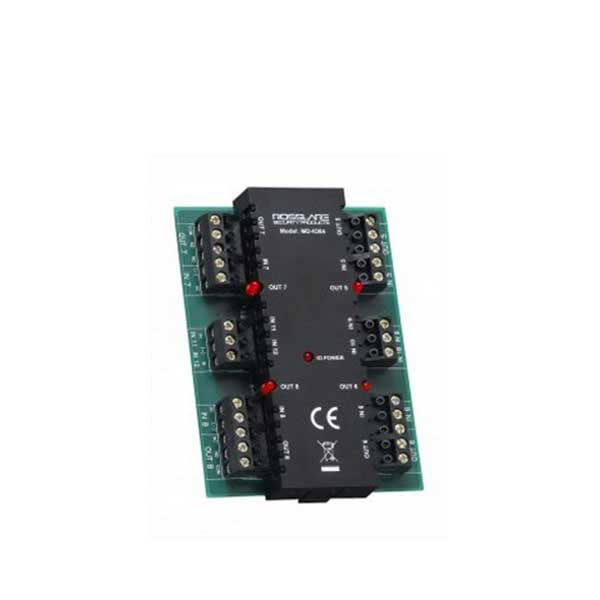

Rosslare - MDIO84 - Eight Input - Four Output Expansion Board
The ROS-MD-IO84 is an 8 Input 4 Output Io Expansion Board. The MD-IO84 is an optional I/O expansion board for use withRosslare Security's family of state-of-the-art networked accesscontrollers. The expansion board adds an additional four relayoutputs and eight supervised inputs to the access controlpanel. The host access controller has complete control over theadditional inputs and outputs of the MD-IO84 expansionboard. The inputs and outputs can be configured using anaccess control software system such as Rosslare Security'sVeriTrax AS-225. The software system also configures the MD-IO84's input connection topology.
| Input Voltage | 12VDC |
| Input Current | Standby: 30mA / Maximum: 135 mA |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Output Relays | 5A Form C Relays, NO, NC and COM contacts and Form C Relays |
| Inputs Voltage | 5V DC |
| Dimensions | 100mm L x 75.9mm W x 32.5 D (3.93in. x 2.98 in. x 1.28 in.) |
