Rosslare - GC50 - DigiTool Remote Communication Station - Serial Port & Modem

ROS-GC-50

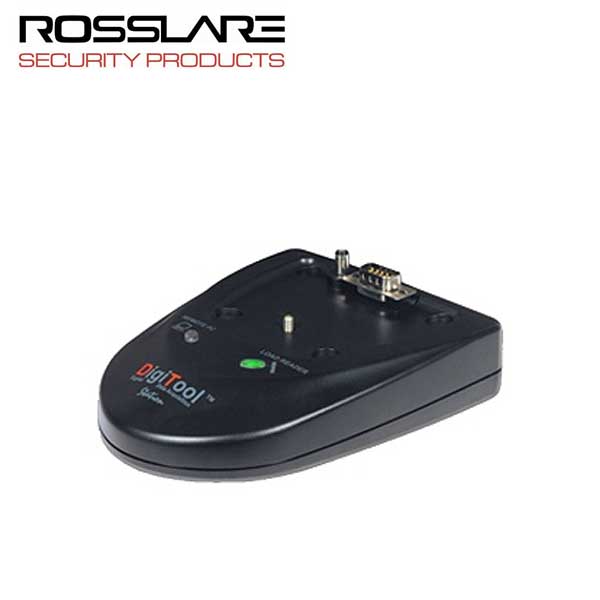

Rosslare’s DigiTool ® GC-50 remote station is designed with a focus on high quality and reliability as a top priority. A user-friendly hardware communication station that
allows you to upload, download, and transfer data that has been collected through the use of the GC02 Reader Base and the GC-01 Acquisition Reader. The GC-50 station can be installed remotely and allows you to transfer data to a local or remote PC via either the serial port or a built-in modem. PCbased DigiTool ® Call Center (DCC) Software (GS-02) then processes the data. This tool is simple to install and even simpler to use.
With just the touch of a button, you can easily manage your distributed DigiTool guard patrol monitoring system on a large geographic and data quantity scale.

Features:

• Communications call-back feature (can be enabled or disabled)

• Variety of call scheduling options

• An internal buzzer for audio validation

• RJ-11 phone in/out plugs

• Internal real-time calendar/clock with battery backup that can maintain operation for 14 days if disconnected from the DC input

• Two bi-colored LEDs for visual validation

• User-friendly operation – as simple as pressing a button

• Unique, compact design, allows for a minimum of cabling requirements, saving desk space




Specifications:

Operating Voltage	9-12 VDC input, from an AC/DC transformer or a regulated DC power source
Input Current	Standby: 30 mA
Max Input Current	Maximum: 150 mA
Memory and clock backup battery	3.6V DC rechargeable: NiMH button cell, 200 mAH
Memory Capacity	1 MB of internal memory; stores over 200,000 time-stamped events
Physical Connections	Telephone line Interface: RJ11 (telephone wall socket) to GC- 50 (LINE socket) Telephone connection: DTMF telephone to GC-50 (PHONE socket) RS-232 Serial PC Connection: Male D-Type 9 pin (GC-50), FemalePC serial port
Data Transfer Rate	9600 Baud for all types of connection
Modes for Connection to Remote GC-50	Operator initiated dial-up, operator initiated call-back, scheduled automatic dial-up/upload
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Environment	Indoor use
Construction Materials	ABS plastic with nickel-plated contacts and water-resistant grommets Water, dust, and dirt-resistant design
Dimensions	150 x 120 x 30 mm (5.90 x 4.72 x 1.18 in.)
Manufacture Warranty	2-Year Limited Warranty

Downloads:

• Data Sheet
