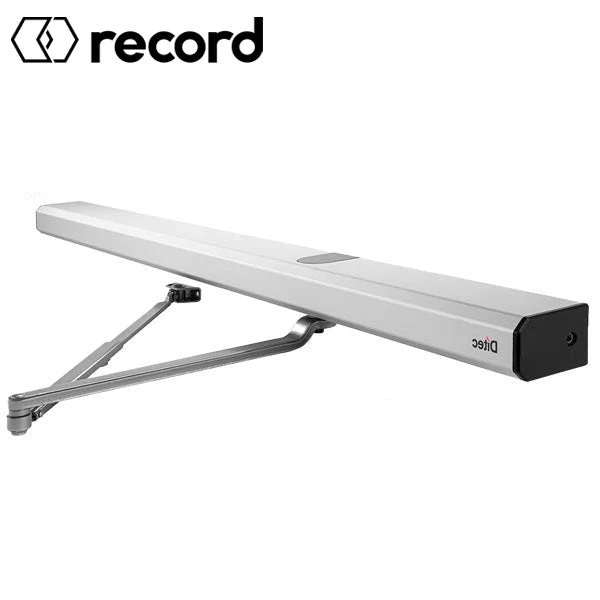

Record - HA7 - Low Profile Swing Door Operator - PUSH & PULL Arm - Non Handed - For Single Interior Doors - 48"



The Ditec HA7 low-energy operator has the same power and durability as the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings, and offices.

Clear Finish
Push Arm and Push Arm included - Non-Handed
Available for up to 48" doors

• Non-handed
• Electrician not required, with the option of simply plugging into a standard 120VAC wall outlet
• Power assist
• Push and Go
• Parking (multiple-point hold open)
• Privacy Function (patent pending)
• Ratchet Function
• Electric-strike integration (no external relays required)
• UL325/UL10C certified
• For use on single interior doors


Application	Single Interior Doors
Header Size:	39"
Manual Opening/Closing Force:	Adjustable 5 to 15 lbs.
Handing:	Non-Handed
Header Size:	Height: 1.875” Depth: 3” Length: 39.5”
Arm:	Push And Go
On/Off/Hold Open Switch:	Yes
Power Adapter:	Yes
Power Supply:	120 VAC +10/-15%, 50/60 Hz
Power Consumption:	Max 90 W
Auxiliary Voltage:	24 V DC, max 400 mA
Electromechanical locking connection:	12 V DC, max 1200 mA or 24 V DC, max 600 MA
Ambient Temperature:	-20° C to +45° C
Relative Humidity:	Max 95%
Door Weight (max):	200 lbs
Door Width (max):	48”
ANSI/BHMA A156.19 Compliant:	Yes
UL/CUL Listing for UL 325/UL10C:	Yes
Surface Mounting:	Yes
Door Opening Angle (PUSH):	80°-110°, with reveal 0-5 1/8”
Door Opening Angle (PULL):	80°-110°, with reveal 0-2”
Opening Time:	Variable between 4.5-12 seconds
Closing Time:	Variable between 4.5-12 seconds
