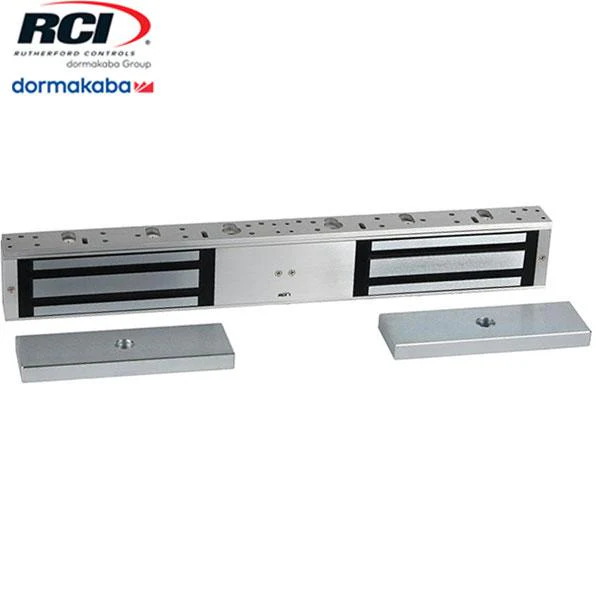

RCI - 8320 MultiMag - Double Door Maglock 1500 lb Holding Force per Door
- ā¢ For single outswinging interior or perimeter doors.
- ā¢ 10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) ā Includes 1/4" (6mm) mounting bracket
- ā¢ Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)
- ā¢ Mode: Fail-Safe
- ā¢Ā Adjustable keyhole mounting
- ā¢ Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds)
Features and benefits:
The MultiMagĀ® series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. The RCI 8310 MultiMagĀ® applies to single outswinging doors, while the RCI 8320 MultiMagĀ® is for double outswinging doors. For additional security monitoring, these electromagnetic locks offer optional door status & security condition sensors.
- Convenient plug-in wiring terminals
- Easy-access wiring cavity
- Stabilizing 4-bolt ādrop stopā mounting
- MOV surge protection
- Designed to overcome residual magnetism
- Hardened steel armature nut
- Self-drilling TeksĀ® fasteners
- Includes 5/8" (16mm) armature plate
- Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish
- UL 294 Special Locking Arrangement Component (6th Edition)
- UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
- California State Fire Marshal Listed (CSFM: 3774-2127:0100)
- Strength: Up To 1,500lbf Holding Force (Each Electromagnet)
- Energy: 280mA1, Field-Selectable 12/24VDC
- Warranty: Lifetime Limited Warranty
- Model: 8310, 8310-28, 8310-40
