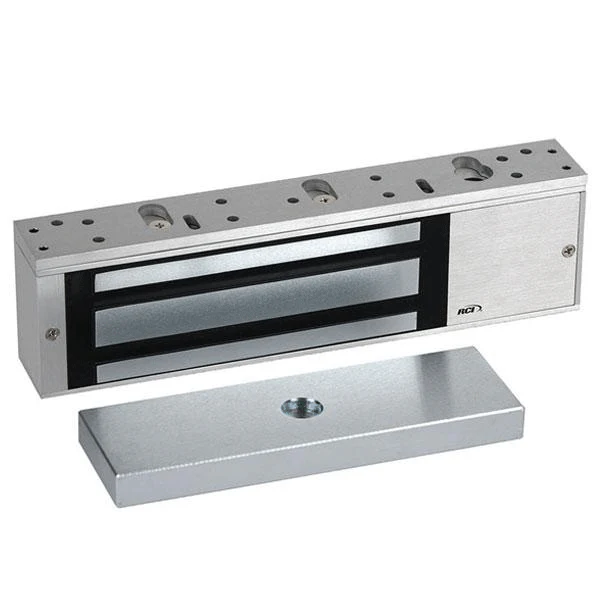

RCI - 8310 MultiMag - Single Door Maglock - 1500 lb Holding Force

• For single outswinging interior or perimeter doors.
• 10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket
• Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)
• Mode: Fail-Safe
• Adjustable keyhole mounting

Features and benefits:

The MultiMag® series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. The RCI 8310 MultiMag® applies to single outswinging doors, while the RCI 8320 MultiMag® is for double outswinging doors. For additional security monitoring these electromagnetic locks offer optional door status & security condition sensors.

•  Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds)
• Convenient plug-in wiring terminals
• Easy-access wiring cavity
• Stabilizing 4-bolt “drop stop” mounting
• MOV surge protection
• Designed to overcome residual magnetism
• Hardened steel armature nut
• Self-drilling Teks® fasteners
• Includes 5/8" (16mm) armature plate
• Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish
• UL 294 Special Locking Arrangement Component (6th Edition)
• UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
• California State Fire Marshal Listed (CSFM: 3774-2127:0100)
• Strength: Up To 1,500lbf Holding Force (Each Electromagnet)
• Energy: 280mA1, Field-Selectable 12/24VDC
• Warranty: Lifetime Limited Warranty
