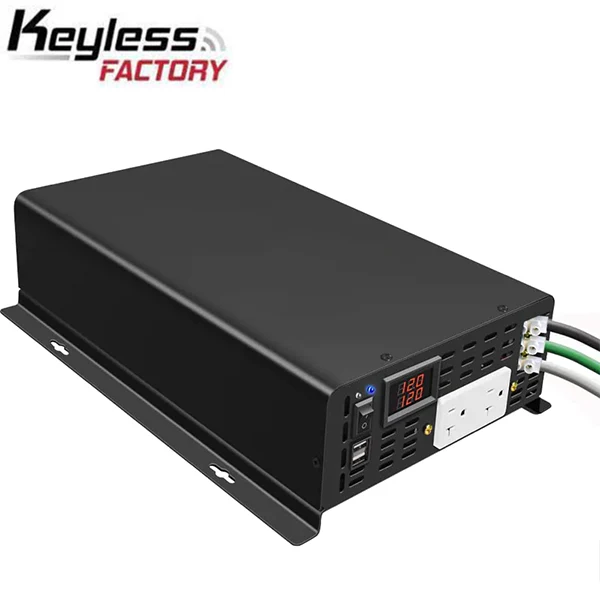

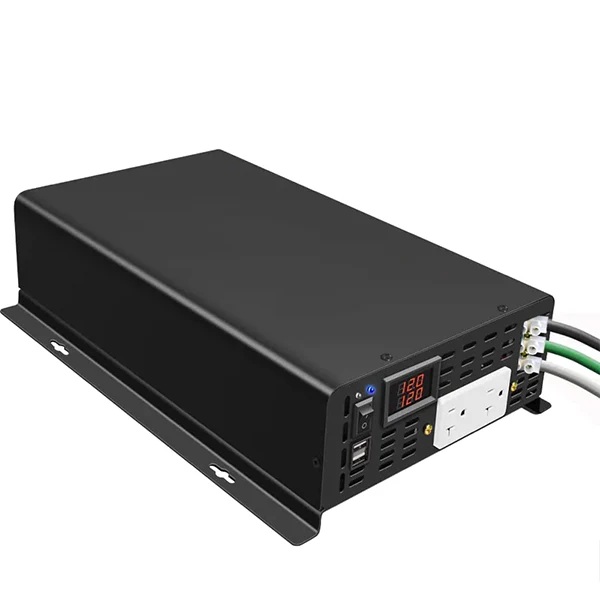

RBU5 - 12VDC - 2500 Watt Pure Sine Wave Inverter - Bi-Directional Inverter - DC to AC - Optional Remote Connectivity - USB Ports
The KLF-RBU5-2500S-LED is a 2500 Watt Bi-Directional Inverter

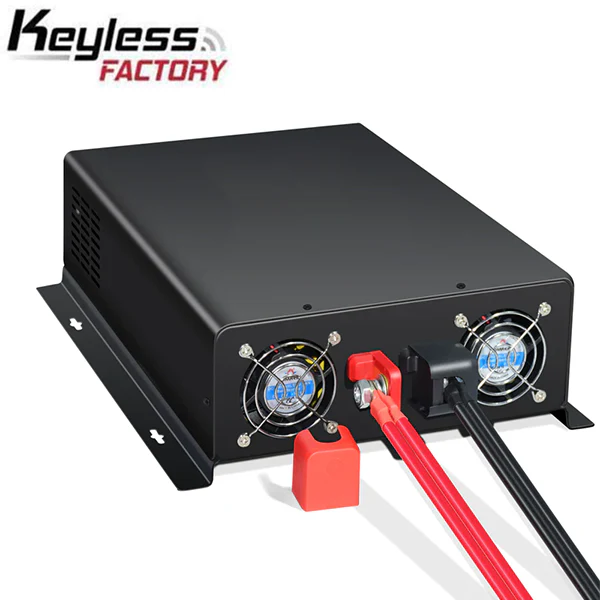

- 2500W (surge 5000W) pure sine wave inverter, with 4 cables with cable lug terminals, manual, and fuses. Everything you need to complete the installation is included.
- Perfect sine wave perfects the performance-- equipped with extra thick (2.0mm) PCB which greatly enhances the load capacity of the inverter, high quality mosfets and true copper inductance work together to make perfect pure sine wave AC output.
- Protections, under voltage alarm cut down protection, over voltage protection, reverse fuse protection, high volt cut off protection, Over current, Over load shut off protection, Short circuit fuses protection, Over thermal production.

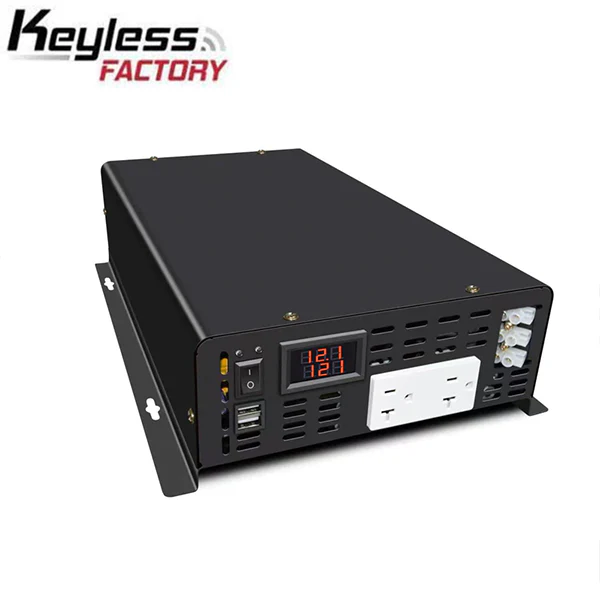

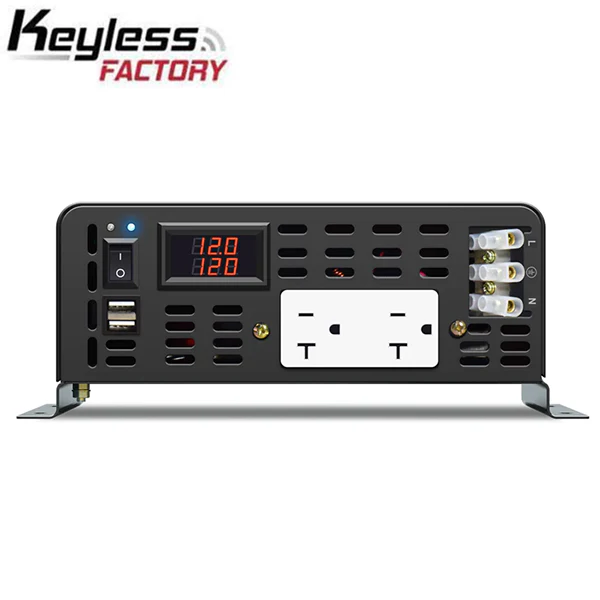

- Monitor power usage with no effort-- LED Display for both DC volt and AC volt which makes the power usage clear for users, a good source of backup power supply for off grid system or emergency like power failure
- Silent cooling system-- intelligent silent fans cools the inverter down automatically without any annoying noise. There is rational and sufficient design of heat sink inside.
More Details Below:
| Net Weight (pound) | 11.3 |
| Wattage | 2500w |
| AC Output Voltage | 12v / 24v / 36v / 48v / 60v / 72v / 96v / 110v |
| DC Input Voltage Range | 10-15v / 21-30v / 30v-45v / 42-60v / 50-75v / 60-90v / 75v-115v / 90-135v |
| No Load Current Draw | 1A |
| Efficiency | 85% -- 90% |
| AC Regulation | 3% |
| Frequency | 50Hz or 60Hz |
| Low Voltage Alarm | 9.5-10.5v / 19.5-21.5v / 29.5v-31.5v / 43-45v / 50.5-51.5v / 60.5-61.5v / 76-77v / 91-93v |
| Low Voltage Shut Down | 9-10v / 18.5-20.5v / 29-30v / 41.5-42.5v / 50-51v /60-61v / 74-76v / 90v |
| Over Load | Shut Off & Recover Manually |
| Over Voltage Shut Down | 15.5v / 30.5v / 45.5v /61.5v /75v / 90v / 115 / 135v |
| Over Voltage Protection | Shut Off Output Automatically |
| Cooling Fans | 2 |
| Working Temperature | -10℃ TO 50℃ / -50℉ TO 122℉ |
| Storage Temperature | -30℃ TO 70℃ / -86℉ TO 158℉ |
| Working Humidity | 20% TO 90% RH Non-condensing |
| Start | Soft Start |
| Total Harmonic Distortion | THD<5% |
Sparking Input Side

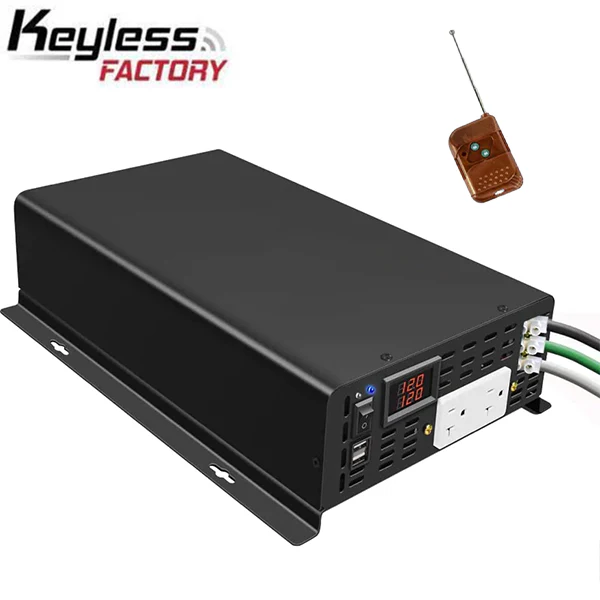

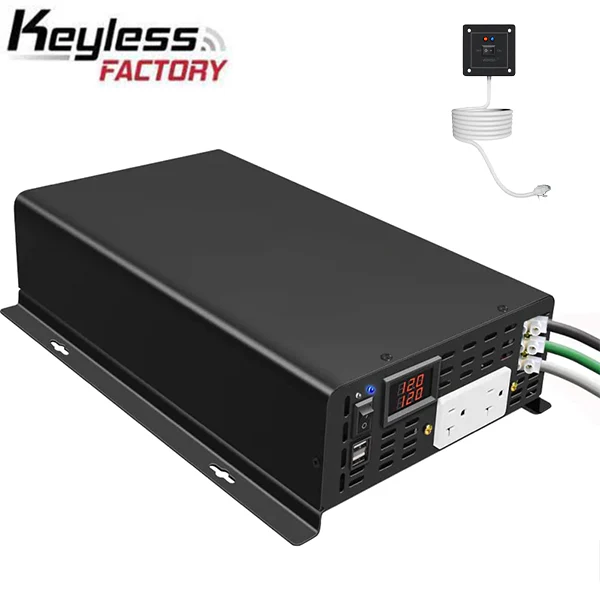

Select Remote Options
From $107.80
Original: $308.00
-65%RBU5 - 12VDC - 2500 Watt Pure Sine Wave Inverter - Bi-Directional Inverter - DC to AC - Optional Remote Connectivity - USB Ports—
$308.00
$107.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The KLF-RBU5-2500S-LED is a 2500 Watt Bi-Directional Inverter
- 2500W (surge 5000W) pure sine wave inverter, with 4 cables with cable lug terminals, manual, and fuses. Everything you need to complete the installation is included.
- Perfect sine wave perfects the performance-- equipped with extra thick (2.0mm) PCB which greatly enhances the load capacity of the inverter, high quality mosfets and true copper inductance work together to make perfect pure sine wave AC output.
- Protections, under voltage alarm cut down protection, over voltage protection, reverse fuse protection, high volt cut off protection, Over current, Over load shut off protection, Short circuit fuses protection, Over thermal production.
- Monitor power usage with no effort-- LED Display for both DC volt and AC volt which makes the power usage clear for users, a good source of backup power supply for off grid system or emergency like power failure
- Silent cooling system-- intelligent silent fans cools the inverter down automatically without any annoying noise. There is rational and sufficient design of heat sink inside.
More Details Below:
| Net Weight (pound) | 11.3 |
| Wattage | 2500w |
| AC Output Voltage | 12v / 24v / 36v / 48v / 60v / 72v / 96v / 110v |
| DC Input Voltage Range | 10-15v / 21-30v / 30v-45v / 42-60v / 50-75v / 60-90v / 75v-115v / 90-135v |
| No Load Current Draw | 1A |
| Efficiency | 85% -- 90% |
| AC Regulation | 3% |
| Frequency | 50Hz or 60Hz |
| Low Voltage Alarm | 9.5-10.5v / 19.5-21.5v / 29.5v-31.5v / 43-45v / 50.5-51.5v / 60.5-61.5v / 76-77v / 91-93v |
| Low Voltage Shut Down | 9-10v / 18.5-20.5v / 29-30v / 41.5-42.5v / 50-51v /60-61v / 74-76v / 90v |
| Over Load | Shut Off & Recover Manually |
| Over Voltage Shut Down | 15.5v / 30.5v / 45.5v /61.5v /75v / 90v / 115 / 135v |
| Over Voltage Protection | Shut Off Output Automatically |
| Cooling Fans | 2 |
| Working Temperature | -10℃ TO 50℃ / -50℉ TO 122℉ |
| Storage Temperature | -30℃ TO 70℃ / -86℉ TO 158℉ |
| Working Humidity | 20% TO 90% RH Non-condensing |
| Start | Soft Start |
| Total Harmonic Distortion | THD<5% |
Sparking Input Side
