PDK - Ethernet Gateway - Cloud Network Access Control Ethernet Gateway
Extend Network Coverage

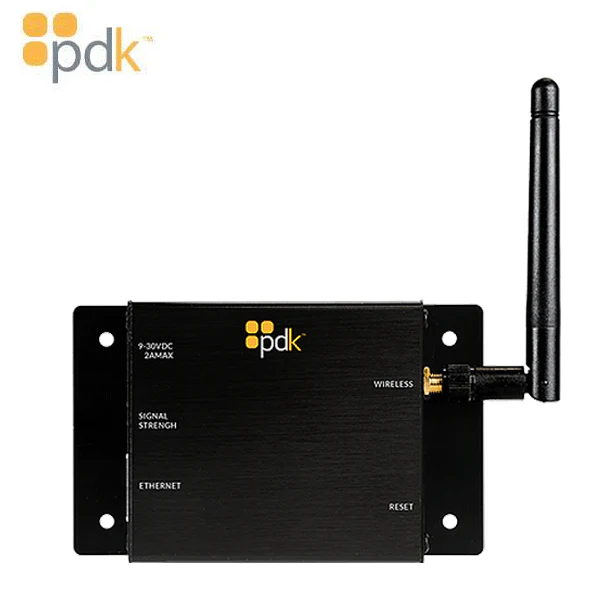

Extend the WiMACTM wireless signal by connecting this gateway anywhere on the local network. When connected, the pro wireless - ethernet gateway will coordinate connected wireless door controllers and feed the data back to the cloud node via a network. The ethernet gateway also gives you the ability to control doors in multiple buildings connected to the same network.
Model PN: LZE - Cloud Network Access Control Gateway (Ethernet)
Specifications
| Communication: | Ethernet Encryption: AES 128bit WiMACTM Wireless Mesh (2.4 GHz / 802.15.4) Wireless Range: 1 Mile LoS, 450ft indoor average |
| Environmental: | Temperature: -20 ~ +60 C or -4 ~ +140 F Humidity: 0 - 95% relative humidity non condensing |
| Enclosure: | Dimensions (W x H x D) 2.75” x 3” x 1.125” Metal Enclosure |
| Power: | 9 to 30V DC from included power supply |
| Manufacturer’s Limited Warranty | One to three-year warranty against defects in materials and workmanship. |
Package Contents -
- Gateway (1)
- Power Supply (1)
- Ethernet Cable (1)
- Antenna (1)
This item is available for purchase ONLY for low voltage and access control professional installers. Non certified professional installers do not qualify for ANY technical support from PDK. Additionally, the manufacturer's warranty is ONLY available for professional certified access control installers
Online Manual
