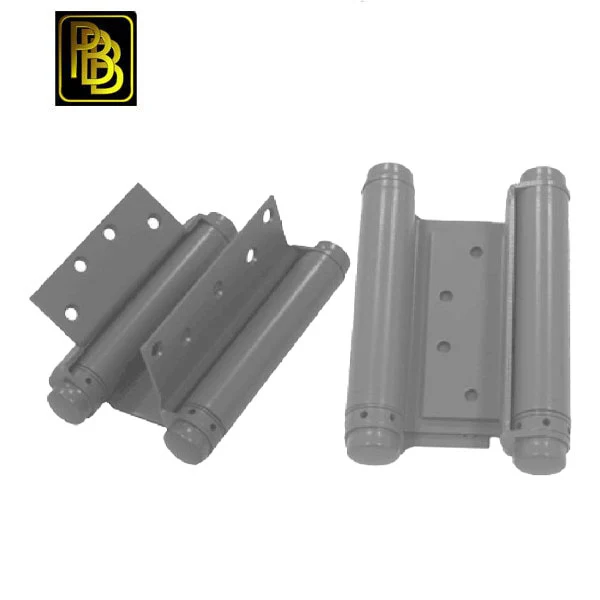

PBB - DA81 - Double Acting Spring Hinge - Full Mortise - 6" x 4-1/2" - Primed for Painting Finish - Grade 1

Template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).

Features:

• Polished and Plated or Bonderized and Prime Coated Steel for Painting
• Double acting spring hinge is designed to fit standard 4 1/2" x 4 1/2" template mortise.
• Permits doors to open in  either direction and automatically return to the closed position
• See template for exact dimensions
• No hanging strip is required on frame. Jamb flange is surface applied to jamb
• All hinges are ANSI template

Specifications:

Hinge Type	Full Mortise
Duty Weight	Standard Weight
Height	6"
Width	4-1/2"
Door Size	1-3/4" stock hollow metal or wood doors
Screw Size	FHMS - 12-24 x 1/2", FHWS 12 x 1/12"
Max Door Weight	107 lbs
Material Gauge	.005
Finish	USP Prime Coat
Certifications	ANSI / BHMA A156.17



Downloads:

• Spec Sheet
• Template
