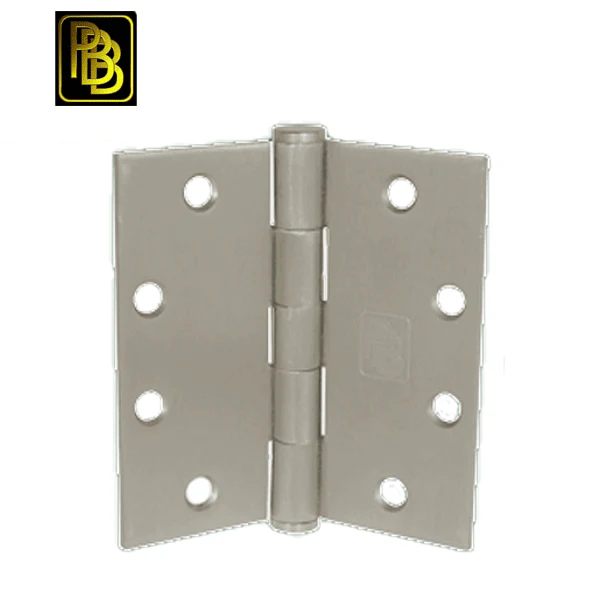

PBB - PB81 - Architectural Hinge - Full Mortise - Plain Bearing - 3.5" x 3.5" - Optional Finish - Grade 3

PBB-PB813535652R-PB81

PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute

Features:

• For use on standard weight doors or doors receiving low frequency usage
• 3.5" x 3.5"
• Finishes available: Satin Chromium, Primed for painting, Satin Nickel Plated

• 1/4" Rounded corners available in Satin Chromium finish
• Includes screw pack with machine screws and wood screws
• Not for use with door closers
• Satin Nickel and Primed for paint in Squared ONLY



Specifications:

Hinge Type	Plain Bearing
Corner Type	Square or Rounded on select finishes
Duty Weight / Class	Standard weight
Height	3.50 ± .015
Width	3.50 ± .015
Max door size	2'6" x 7'
Max door weight	40
Material Gauge	.123 ± .005
Finish	Satin Chromium, Primed for painting, Satin Nickel Plated
Certifications	Grade 3, ANSI/BHMA A156.17, UL Listed



Downloads:

• Template
