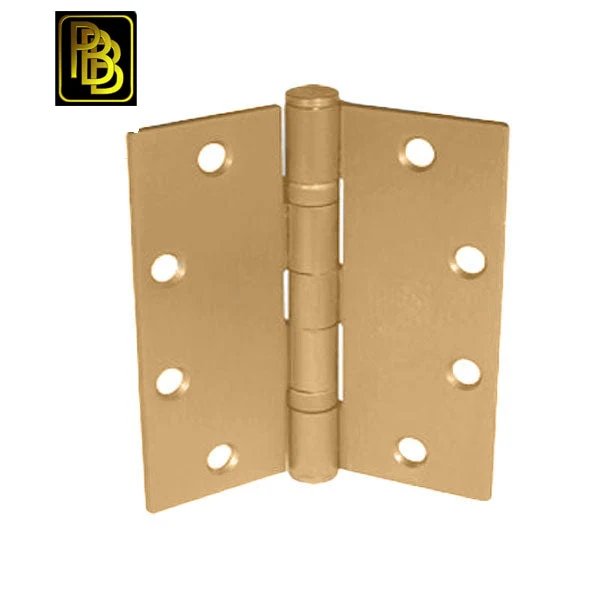

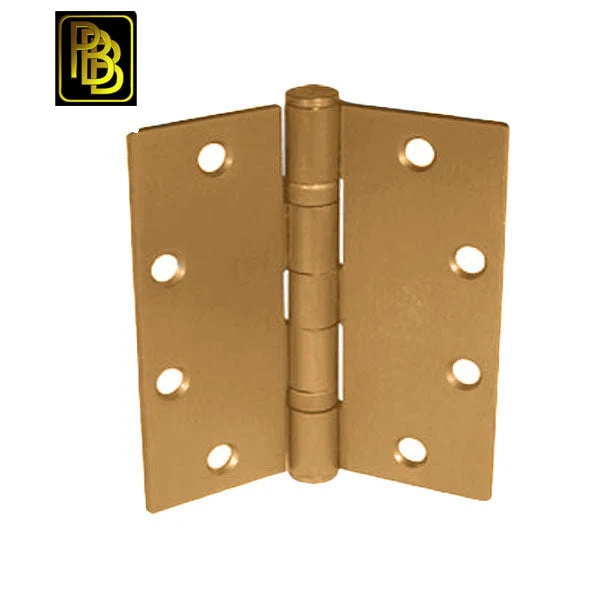

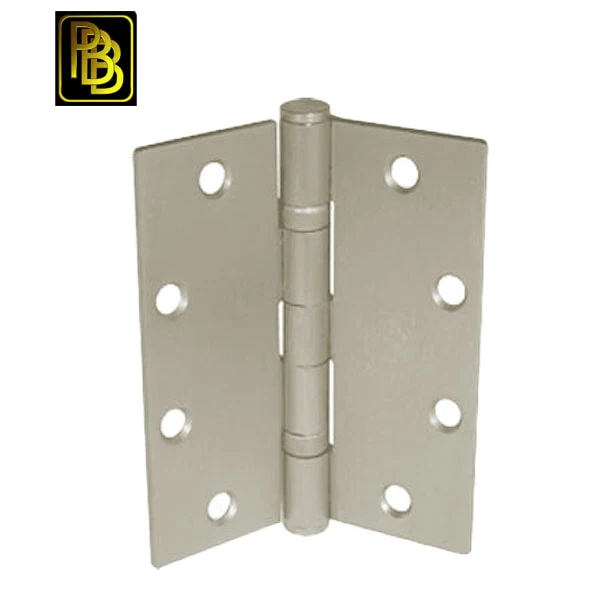

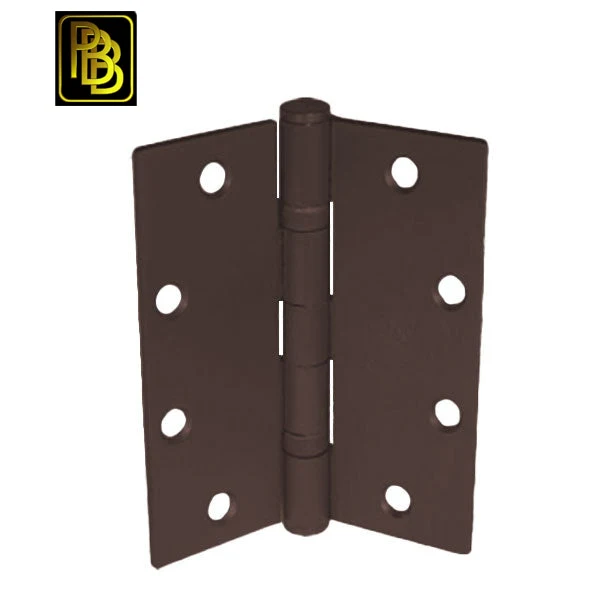

PBB - BB81652 - Architectural Hinge - Full Mortise - Standard Weight - Ball Bearing - 4-1/2" x 4-1/2" - Optional Finish - Optional NRP
This is a BB81652 Standard Weight Full Mortise Ball Bearing Architectural Hinge manufactured by PBB.
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI). For use on medium weight doors or doors requiring average frequency service.
Features
- Ball Bearing
- Full Mortise
- Center Hinge Position
- 4-1/2" x 4-1/2"
- Optional Finish
- Non Removable Pin in Satin Chromium and Steel Primed for Paint ONLY
Specifications
| Corner Type | Square |
| Duty Weight / Class | Standard Weight |
| Height | 4-1/2" |
| Width | 4-1/2" |
| Standard Screw Size |
FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/4” |
| Material Gauge | 0.134 |
| Finish | Optional Finish |
| Certification | ANSI A8112 |
Downloads
