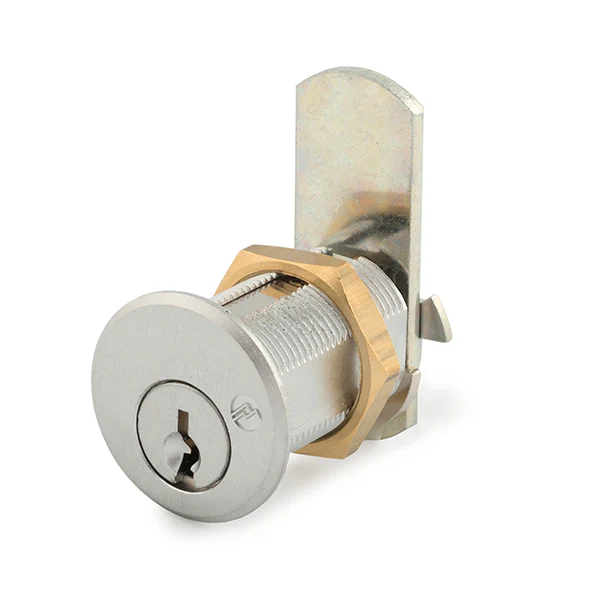

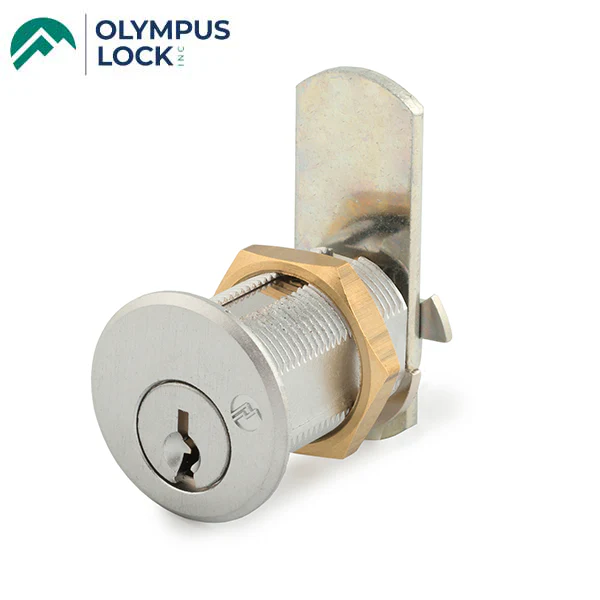

Olympus - DCR - 3/4” Barrel Diameter Cam Lock - Optional Cylinder Length - Satin Chrome - Optional Keying - Grade 1

OLY-DCR-26DXXXX

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• Cam lock - R Series, CCL R1 keyway

• Easily rekeyable via cylinder retainer clip

• Pin tumbler cylinder drilled for 5 pins

• (E07261) ANSI/BHMA Grade 1

• 2 reversible cams work in all locking positions

• 1" face covers splintering no additional trim ring required

Specifications:

Keying	Can be keyed together with other R Series locks
Cylinder length	Four sizes available
Rekeyable	Easily rekeyable via cylinder retainer clip
ANSI/BHMA	Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261 / E07271.
Body	Zinc die cast
Cylinder	Zinc die cast, pin tumbler
Standard function	Key removable in locked or unlocked position.
Cams	2 reversible cams work in all positions
Face	1" face covers splintering, no additional trim ring required
Finish	Satin Chrome 26D
Keyway	R Series (equivalent to CCL R1 system)
Keys	Includes 2 keys per lock
Included Accessories	Straight cam #DCNP-100-SC Offset cam #DCNP-100-BC Anti-rotation plate #DCNP-500-ARP



Downloads:

• Data Sheet
• Installation Instructions
