Olympus - B7 - 3/4” Cam Lock With BEST Keyways - Satin Chrome - Optional Keyway - Optional Keying

OLY-B7-26DXXXX

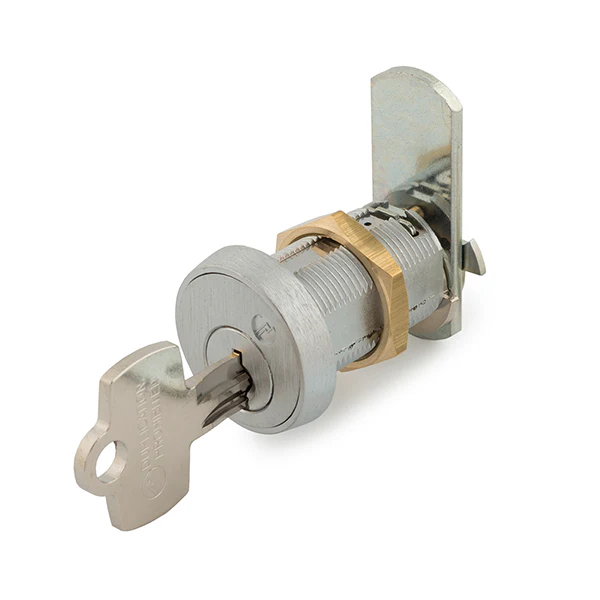

3/4” Cam Lock With BEST Keyways

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• Cam lock - Best keyway, 3/4" diameter

• Easily rekeyable via cylinder retainer clip

• Retrofits BEST 5E Series

• Pin tumbler cylinder drilled for 7 pins

• ANSI/BHMA No. E07261

• 2 reversible cams work in all locking positions

• 26D finish

• Cylinder length: 1-1/8"

Specifications:

Function	Cam lock
Rekeyable	Easily rekeyable via cylinder retainer clip
Retrofits	Best 5E
Usage	Commonly used as locking device on medical carts (see also our 724VR medical cart/file cabinet lock for use on medical carts)
Body	Zinc die cast
Cylinder	Zinc die cast pin tumbler, drilled for 7 pins
Standard function	Key removable in locked or unlocked position
Cams	2 reversible cams work in all positions
Finish	Satin Chrome 26D
Keyways	A, B, E, F, G, J, K, L, R
Keys	Includes 2 keys per lock
Included Accessories	Trim collar Straight cam #DCNP-100-SC Offset cam #DCNP-100-BC Anti-rotation plate #DCNP-500-ARP



Downloads:

• Spec Sheet
• Installation Instructions
