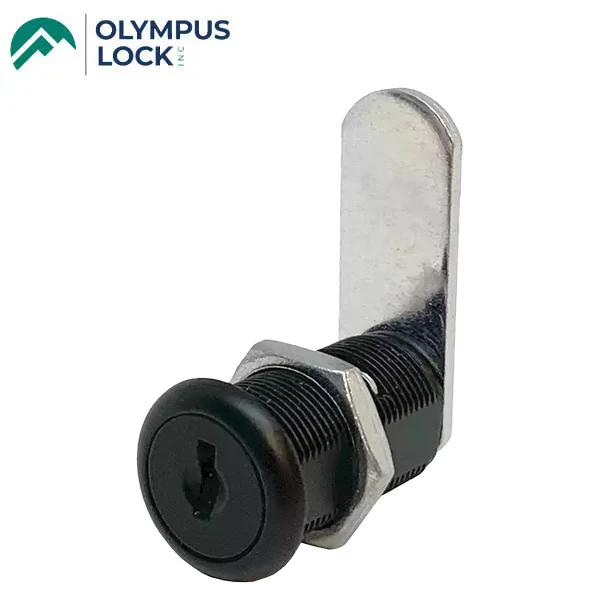

Olympus - 955 Series - Cylinder Disc Tumbler Cam Lock Key -1-7/16" - Matte Black - C413A Key
Cascade Series Disc Tumbler Cam locks ship with body and cylinder assembled for fast and easy installation. Passed ANSI/BHMA Grade 2 test of 20,000 cycles, including key insertion and removal. The Cascade series comes with a zinc body die-cast cylinder 5-disc tumbler. The standard function 90-degree cam rotation and has key removable in locked or unlocked position. Ships with anti-rotation, eyelet spur washer (which can be locked into place for a more secure mounting). Cascade Series will key together with CompX National disc tumbler locks.
Features:
- 5-disc tumbler key system
- Will key into CompX/National C8053 or similar disc tumbler products
- Locks ship with a cylinder installed for faster installation
- 90-degree cam rotation, key removable in both locked and unlocked position
- Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal [E07262]
- Ships with one each straight and offset square drive reversible cams (additional cam sizes available separately)
- Includes eyelet spur washer for more secure mounting and anti-rotationĀ
- Mounts in standard 3/4" diameter hole
- Includes Cylinder with lock body assembly, two keys, one 1-1/2" straight cam, one 1-1/8" long with 11/32" offset cam, one eyelet spur washer, one fixing nut, one trim ring, one cam screw with star washer, one retainer staple, and one plug extender.
Specifications:
| Cylinder Length | 1-7/16"Ā |
| Finish | Matte Black |
| Key No. | C413A |
| Lock Type | Cam Lock |
| Max Material Thickness | 1-1/8" |
| Tumbler | Disc |
| Rotation | 90Ā° |
| Material | Die-Cast Zinc |
| Key Type | Keyed Alike |
| Mounting Hole Size | 3/4" in wood, 5/8" x 3/4" in metal |
