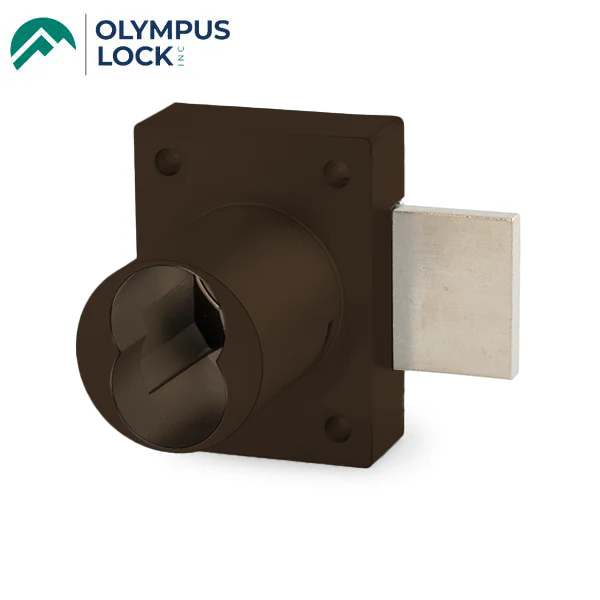

Olympus - 931DR - Cabinet Deadbolt Door Lock - IC: For Medeco or Yale Large-Format Cores - Less Cylinder - Oil Rubbed Bronze - Optional Key Retaining - Grade 1
OLY-931DR-10BXXXX (Regular Bolt)
IC: For Medeco or Yale Large-Format Cores.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cabinet lock - deadbolt door lock
- Accepts Medeco/Yale IC core
- Standard function: locks are non-handed with key removable in the locked and unlocked position
- Optional key-retaining* function: for part-numbers and handing see key retaining chart
- Barrel diameter: 1-1/8"
- Barrel length 1-3/8"
Specifications:
| Standard function | Key removable in locked and unlocked position. |
| Key-retaining function | Key removable in locked position only. Specify -KR for key retaining. |
| Cylinder length |
1-3/8" |
| Barrel diameter | 1-1/8" |
| Body | Zinc die cast |
| Finish | Oil Rubbed Bronze 10B |
| Cylinder | Not included |
| Medeco cylinder | Accepts Medeco #32-0201 (6-pin) IC cylinder and Medeco #31-0100 (6-pin) Yale IC compatible cylinder |
| Yale cylinder | Accepts Yale 1210 Series (6-pin) IC core cylinder |
| ASSA cylinder |
Accepts ASSA's 6-pin, Yalecompatible large format IC cylinder |
| Special note | Medeco "Keymark" cylinders require Best compatible (small format) cabinet lock bodies |
| Included Accessories | 931-PA plastic thumbturn 931-1 spacer for 6-pin Medeco cores 10-350 plastic spacers (qty 3) 10-054 1/4" plastic bar strike 10-055 1/2" plastic bar strike |
Downloads:
Original: $55.03
-65%$55.03
$19.26Product Information
