Olympus - 850S - Deadlatching Drawer Lock - S Series Schlage C Keyway - Optional Cylinder Length - Polished Brass - Optional Keying - Grade 1

OLY-850S-US3XXXX (Regular Bolt)

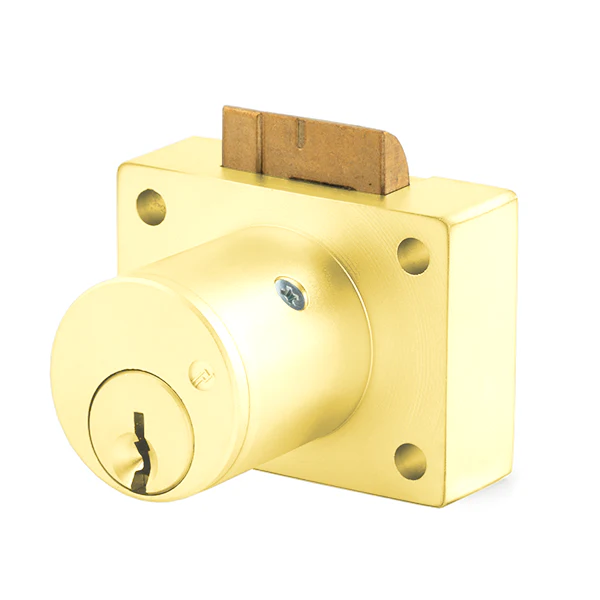

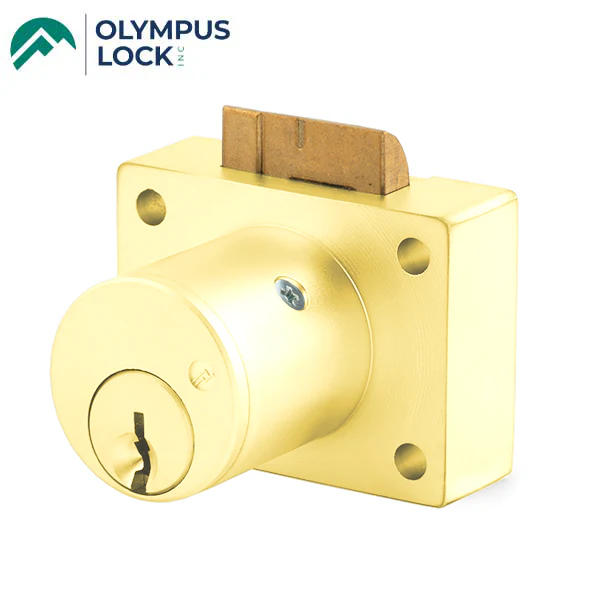

S Series Schlage C Keyway Drawer Deadlatch Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• Cabinet lock - deadlocking drawer latch lock

• Easily rekeyable via cylinder release mechanism

• Will accept other manufacturer's Schlage compatible deadbolt cylinders

• Barrel lengths: 1-1/8" or 1-3/8" (specify barrel length when ordering)

• Barrel diameter: 1-1/8"

Specifications:

Rekeyable	Easily rekeyable via set-screw cylinder removal mechanism
Body	Zinc die cast
Cylinder length	1-1/8" or 1-3/8"
Barrel diameter	1-1/8"
Finish	Polished Brass
Included Accessories	For 1-1/8"barrel length locks: - 10-350 plastic spacers (qty 2) - 850-210 matching strike For 1-3/8"barrel length locks: - 850-211 matching strike
Keying	101 KA - Keyed Alike 102 KA - Keyed Alike KD - Keyed Different
Keyway	Schlage C keyway
Keys	Includes 2 keys per lock
Cylinder	Solid brass, pin tumbler



Downloads:

• Spec Sheet
• Installation Instructions
• Rekeying Instructions
