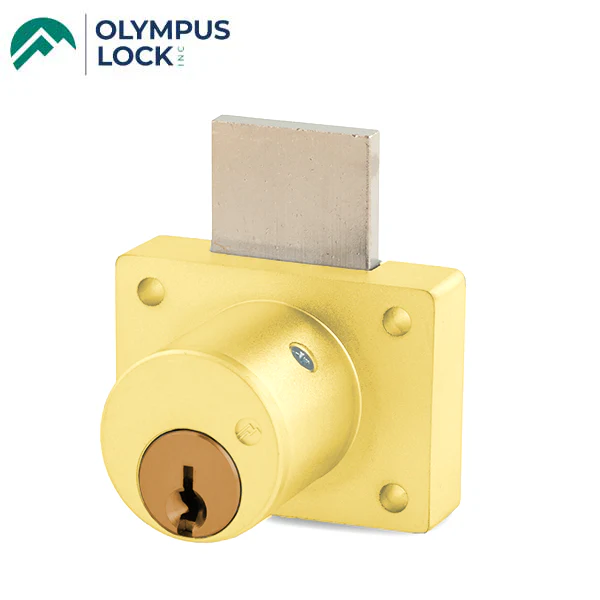

Olympus - 800S - Cabinet Drawer Deadbolt Lock - S Series Schlage C Keyway - Optional Cylinder Length - Polished Brass - Optional Keying - Grade 1

OLY-800S-US3XXXX (Regular Bolt)

S Series Schlage C Keyway Drawer Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• S Series Schlage C Keyway
• Cabinet drawer deadbolt lock
• Easily rekeyable via set screw cylinder release mechanism
• Passed ANSI/BHMA A156.11 Grade 1 performance requirements
• Cylinder length: Optional 1-1/8" or 1-3/8"

• Barrel diameter: 1-1/8"

Specifications:

Function	Deadbolt drawer lock key retaining
Cylinder	S Series: Schlage C Keyway Deadbolt
Keyed Alike	KA 101,102 or O-BIT
Cylinder Length	Optional 1-1/8" or 1-3/8"
Barrel Diameter	1-1/8"
Handing	Inverted or Vertical option
Function	Key removable in locked or unlocked position
Body	Zinc Die Cast
Finish	Polished Brass
Includes	For 1-1/8"barrel length locks: - 10-350 plastic spacers (qty 2) - 10-054 1/4" plastic bar strike - 10-055 1/2" plastic bar strike For 1-3/8"barrel length locks: - 10-054 1/4" plastic bar strike
Certifications	Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700S) / E07041 (800S).



Downloads:

• Spec Sheet
• Installation Instructions
• Rekeying Instructions
• Key Retaining Chart
