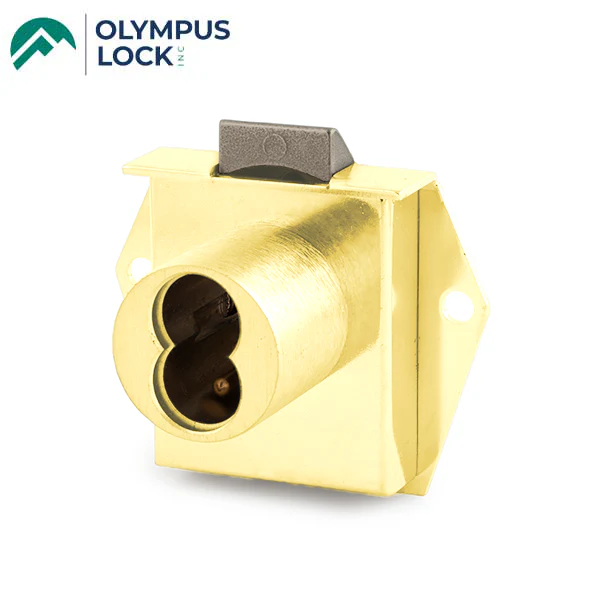

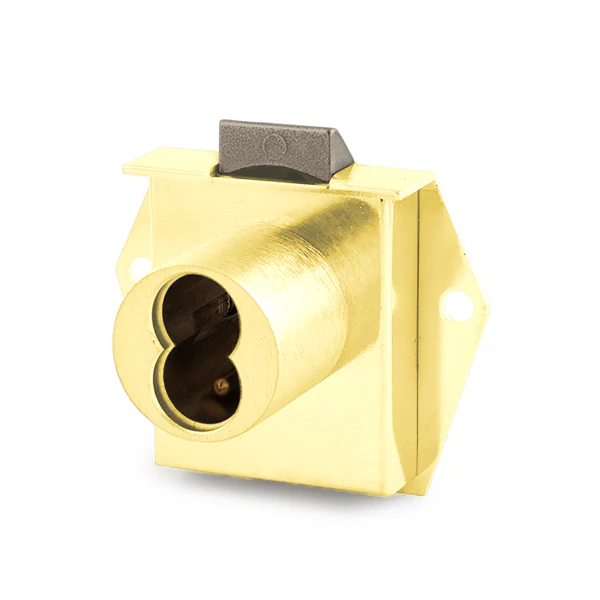

Olympus - 725ML - SFIC Mortise Latch Door & Drawer Cabinet Lock - BEST SFIC - 1-1/16" Cylinder Length - Polished Brass - Optional Handing - Grade 1

OLY-725ML-DRXXXX

SFIC Mortise Latch Door & Drawer Cabinet Lock

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• Cabinet lock - Mortise mount

• Latchbolt locking mechanism

• Retrofits Best 5L series cabinet locks

• ANSI/BHMA E07091 (cabinet door)

• ANSI/BHMA E07061 (drawer)
• Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
• Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders

• Barrel diameter: 1-1/8"

• Standard barrel length: 1-1/16"

SPECIFICATIONS

Retrofits	Best 5L7ML
Function	Mortise mounted latch
Handing	Available for doors or drawers
Testing	Passed ANSI/BHMA A156.11 Grade 1 performance requirements.
Barrel diameter	1-1/8”
Cylinder length	1-1/16”
Finish	Polished Brass US3
Cores	Not included
Accepts	Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
Compatible electronic cylinders	Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders.
Included Accessories	725-1 spacer to fit 6 or 7 pin cores 725-SP-ML slotted lipped strike 725-PA plastic thumbturn



Downloads

• Installation Instructions / Dimensions
• Spec Sheet
• Handing Chart
• Cylinder Installation
