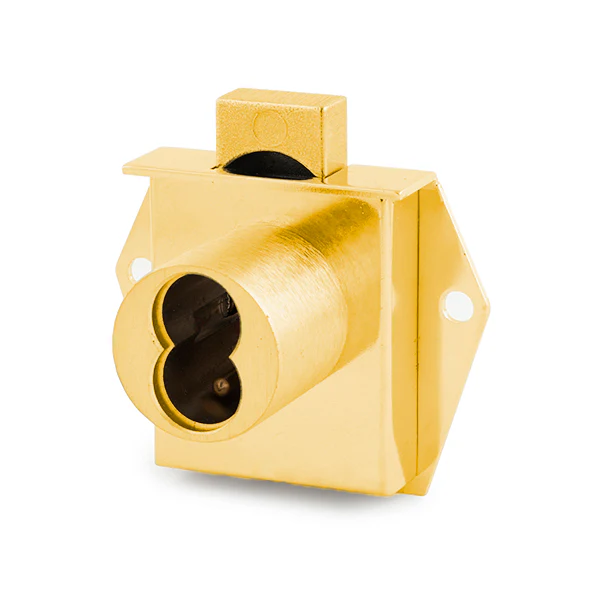

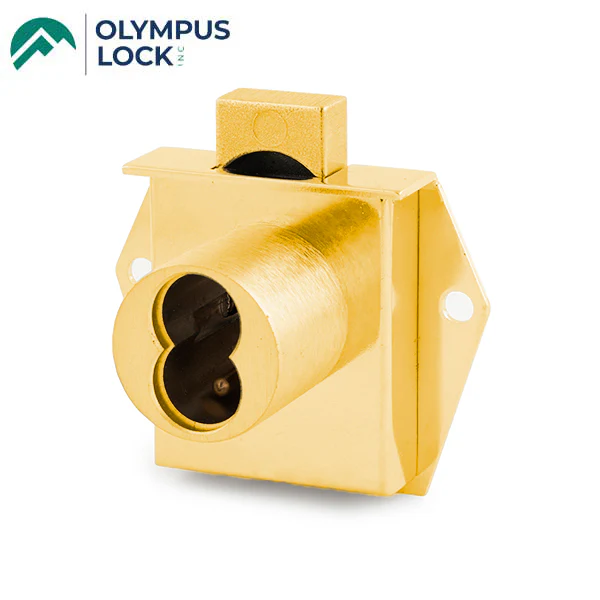

Olympus - 725M - IC Core Mortise Deadbolt Drawer Lock - BEST SFIC - 1-1/16" to Cylinder Length - Standard Length Bolt - Polished Brass - Optional Handing - Optional Key Retaining - Grade 1
OLY-725MD-DR
Interchangeable Core Best Compatible (Small Format) Drawer Deadbolt Lock
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- 725M deadbolt drawer lock
- Drawer lock - mortise mount
- Accepts 6 or 7 pin SFIC cores.
- Standard bolt length
- Retrofits Best 5L series cabinet locks
- ANSI/BHMA Grade 1
- Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
- Standard function: Key removable in locked or unlocked position.
- Key-retaining function: Key removable in locked position only.
SPECIFICATIONS
| Function | Deadbolt Drawer lock |
| Bolt | Standard Bolt Length |
| Retrofits | Best 5L |
| Functions |
Key removable in locked or unlocked position. Key removable in locked position only with key retaining option |
| Body | Zinc die cast |
| Barrel Diameter | 1-1/8” |
| Cylinder length |
1-1/16" |
| Finish | Polished Brass |
| Cores | Not Included |
| Accepts |
- Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores - 6 or 7 pin SFIC cores. |
| Compatible electronic cylinders | Nexgen XT or VIDEX CyberLock SFIC cylinders |
| Includes |
725-1 spacer to fit 6 or 7 pin cores 725-SP-MD slotted rectangular strike 725-PA plastic thumbturn |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1b performance requirements |
