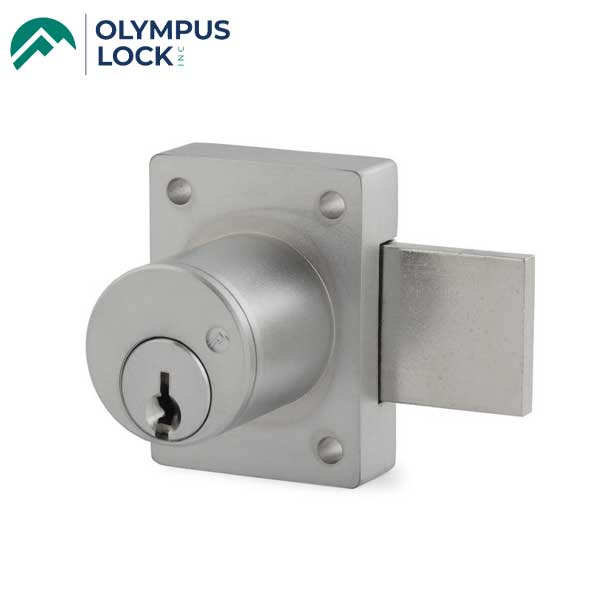

Olympus - 700S - Cabinet Door Deadbolt Lock - 1-1/8" - Schlage C - 26D - Satin Chrome - KD - Grade 1

OLY-700S-26D-KD

Schalge C Keyway Cabinet Door Deadbolt Lock.

Easily rekeyable via rear set screws. Will accept other manufacturer's Schlage compatible deadbolt cylinders

More Information Below

SPECIFICATIONS

Function	Cabinet Door Lock
Cylinder	Schlage "C" Keyway w/ 2 Keys Per Lock
Keyed Alike	No Keyed Differently
Cylinder Length	1-1/8"
Barrel Diameter	1-1/8"
Functions	Key removable in locked or unlocked position. Standard function locks are non-handed.
Body	Zinc die cast
Finish	26D - Satin Chrome
Includes	- 10-350 plastic spacers (qty 2) - 10-054 1/4" plastic bar strike - 10-055 1/2" plastic bar strike
Certifications	Passed ANSI/BHMA A156.11 Grade 1 performance requirements

Downloads

• Spec Sheet / Dimensions
• Installation Instructions
• Rekeying Instructions
