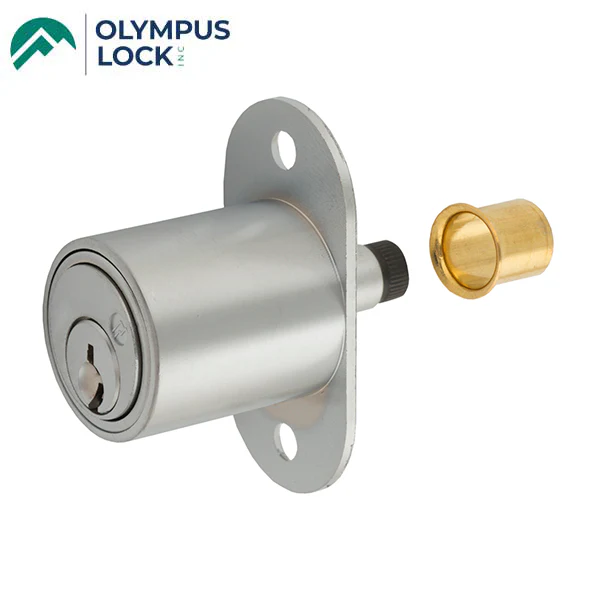

Olympus - 400SD - Sliding Door Plunger Lock - Satin Chrome - 7/8" Material Thickness - Optional Keying - Grade 1

OLY-400SD-26DXXXX

R Series - CCL Sliding Door Plunger Lock

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• 400SD Sliding Door Plunger Lock

• For bypassing sliding doors
• Speed release mechanism for easy rekeying

• Solid brass pin tumbler cylinder drilled for 5 pins
• For material thickness: 7/8"
• R Series (equivalent to CCL R1 system)
• Standard function: locks are non-handed with key removable in the locked and unlocked position.

More Information Below

SPECIFICATIONS

Function	Sliding Door Plunger Lock
Standard function:	Key removable in locked or unlocked position. Standard locks are non-handed
Keyed Alike	4T2, 4T3
Body	Zinc die cast
Cylinder	- 1"  - R Series (equivalent to CCL R1 system) w/ 2 keys per lock
Barrel Diameter	1"
Finish	Satin Chrome
Handing	Non-handing
Includes	- 34-9 matching thimble strike  - 10-24 machine thread bolt extender for varying  - gaps between bypassing doors  - 10-24 machine thread strike locator



Downloads

• Installation Instructions / Dimensions
• Spec Sheet
• Rekeying Instructions
