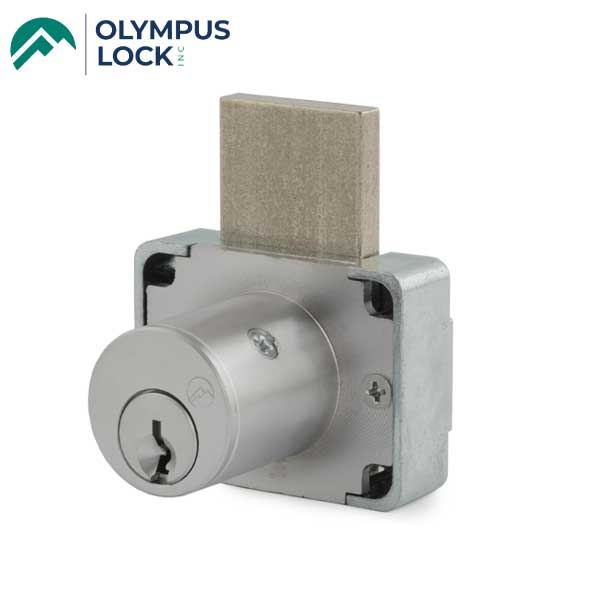

Olympus - 200DW - Cabinet Deadbolt Lock - N Series National - Key Retaining - D4291 4-pin - Standard Bolt - 26D - Satin Chrome - Optional Keying - Optional Handing - Grade 1

OLY-200-(KI/KV)-26DXXXX (Regular Bolt)

D4291 4-pin Keyway Cabinet Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• N Series: (equivalent to National D4291 4-pin system)
• Standard cabinet deadbolt lock

• Easily rekeyable via set screw cylinder release mechanism
• Cylinder length: 15/16" , 1-3/8" , 1-5/8"

• Barrel diameter: 7/8"

Specifications:

Function	Cabinet Deadbolt lock
Cylinder	N Series: (equivalent to National D4291 4-pin system)
Keyed Alike	101, 103, 107, 915, 51001, 51002, 51003, 51004, KD
Cylinder Length	15/16" , 1-3/8" , 1-5/8"
Barrel Diameter	7/8"
Bolt Length	Standard Length
Handing	Optional Left Hand (KI) or Right Hand (KV)
Function	Key removable in locked position only
Body	Zinc Die Cast
Finish	Satin Chrome Plated
Includes	2 keys, 12-3 angle strike, and lock mounting screws
Certifications	Passed ANSI/BHMA A156.11 Grade 1 performance requirements.  Equivalent to E07041(200DW)



Downloads:

• Spec Sheet
• Installation Instructions
• Template
• Rekeying Instructions
• Key Retaining Chart
