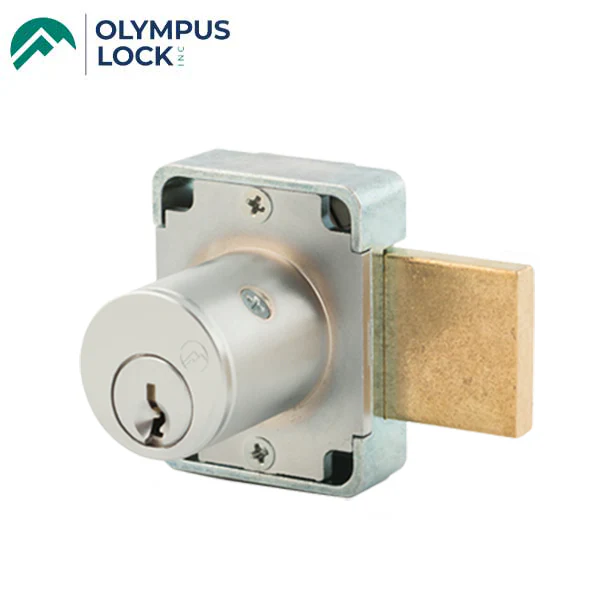

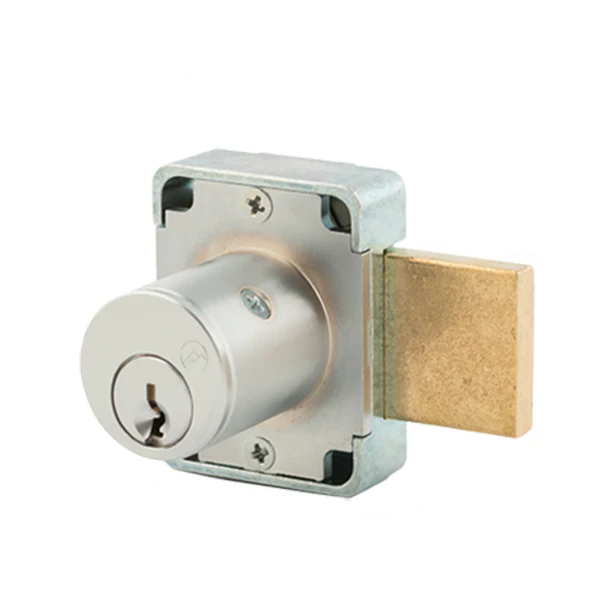

Olympus - 100M - Cabinet Door Deadbolt Lock - N Series National - MRI Series - Standard Bolt - Non Handed - 26D - Satin Chrome - 15/16" Cylinder - Optional Keying - Optional Barrel Length - Grade 1

OLY-100M-26DXXXX (Regular Bolt)

N Series National Keyway Cabinet Drawer Deadbolt Lock.

Easily rekeyable via rear set screws.

Features:

• All non-ferrous (non-magnetic) materials and parts
• Suitable for use in Magnetic Resonance Imaging suites where all components must have non-magnetic properties
• Solid brass pin tumbler cylinder drilled for 5 pins

SPECIFICATIONS

Function	Cabinet Door Lock
Cylinder	National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock
Barrel Diameter	7/8"
Functions	Key removable in locked or unlocked position
Handing	Right Hand
Body	Zinc die cast
Finish	26D - Satin Chrome
Includes	- 2 keys - 56-1 bar strike -lock mounting screws
Certifications	Passed ANSI/BHMA A156.11 Grade 1 performance requirements

•


Downloads

• Spec Sheet / Dimensions
• Installation Instructions
• Template
• Rekeying Instructions
