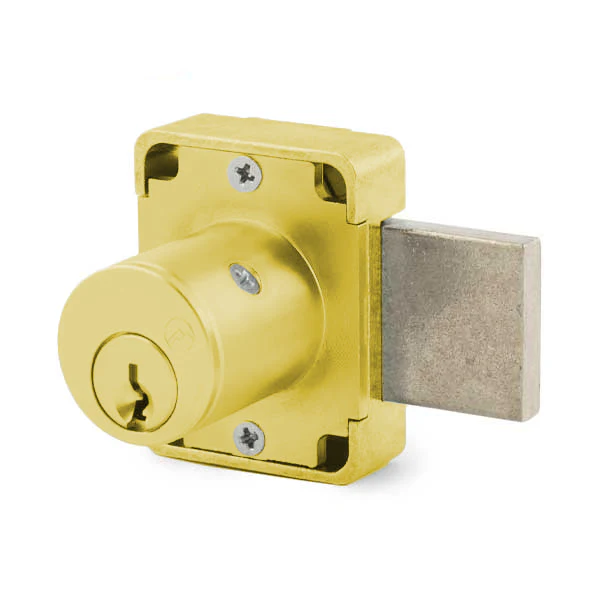

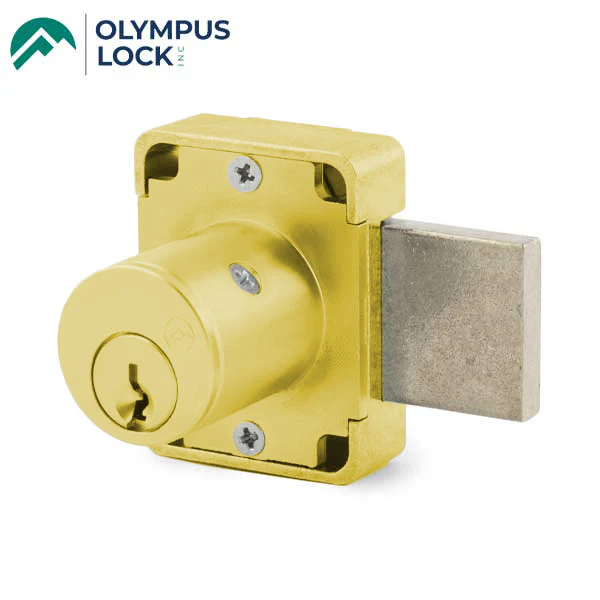

Olympus - 100DR - Cabinet Deadbolt Lock - Key Retaining - D4291 4-pin - Standard Bolt - Satin Brass - Optional Keying - Optional Handing - Grade 1

OLY-100K(L/R)XXXX

 D4291 4-pin Keyway Door Deadbolt Lock.

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Features:

• N Series: (equivalent to National D4291 4-pin system)
• Standard cabinet deadbolt door lock

• Easily rekeyable via set screw cylinder release mechanism
• (E07121) ANSI/BHMA Grade 1
• Barrel length: 15/16"

• Barrel diameter: 7/8"

Specifications:

Function	Deadbolt door lock
Cylinder	N Series: (equivalent to National D4291 4-pin system)
Keyed Alike	101, 103, 107, 915
Cylinder Length	15/16" or 1-3/8"
Barrel Diameter	7/8"
Bolt Length	Standard Bolt Length
Handing	Optional Left Hand (KL) or Right Hand (KR)
Function	Key removable in locked position only
Body	Zinc Die Cast
Finish	Satin Brass
Includes	2 keys, 56-1 bar strike, and lock mounting screws
Certifications	Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW).



Downloads:

• Spec Sheet
• Installation Instructions
• Template
• Rekeying Instructions
• Key Retaining Chart
