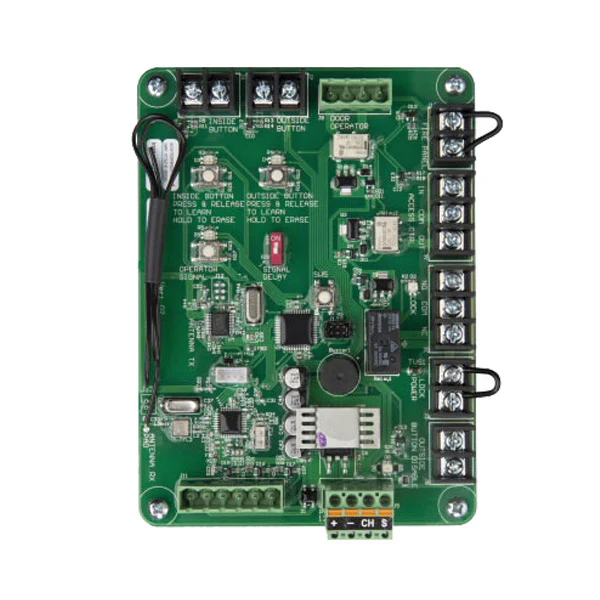

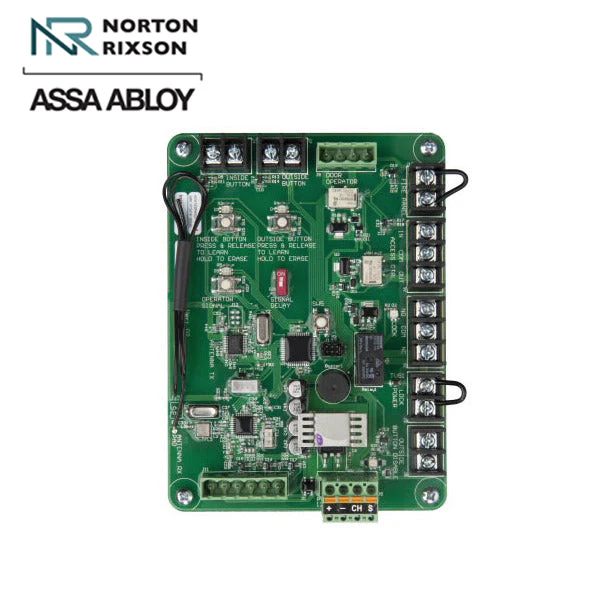

Norton - ADA1028W - 5800 Series ADAEZ - Wireless Interface Module - For Low Energy Operator
The introduction of the Wireless Interface Module enables the 5800 to fulfill the needs of a broader set of applications that require simple and seamless door control through a variety of devices and systems. Easy to install, the WIM can be mounted inside a power supply cabinet, using the included mounting plate and fasteners. The Wireless Interface Module can be ordered separately; specify part number ADA1028W. Norton’s 5800 ADAEZ is one of the world’s only regenerative power door operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, this operator is simple to install and use.
Features
- The WIM (4.25”W x 5.75” H) is designed to fit inside a power supply cabinet, using a supplied plastic mounting plate with double sided tape and fasteners Inputs: Power input: 24VDC
- Hardwire push buttons input: separate INSIDE and an OUTSIDE activation input
- Wireless push button input: separate INSIDE and an OUTSIDE RF activation input
- Handheld transmitter input: (p/n ADA1031 HAND-HELD-TX) interface
- Operator connection cable: Plug in ADA EZ swing door cable connector interface
- Lock power: Dry contact SPDT to power an electric lock
- Outside push button disable: privacy feature
- Outputs: Wireless Output: RF signal to activate ADAEZ door opener
- Output Contacts: SPDT dry contact output for AUX signal
- Lock Contacts: SPDT dry contact output for LOCK
- Access Control Contacts: indicates valid Unlock signal
- Signal Delay Timer: 1.5 second lock release delay
- Emergency Interface Relay (EIR): disables signal inputs
- Designed to interface all versions of the 5800 Series ADAEZ Low Energy Operator (PRO, PRO PLUS, COMPLETE)
