Norton - 5811 - Regenerative Door Operator ADAEZ PRO Kit - Pull Side - Push Buttons - Aluminum - Grade 1 - Square Buttons
NOR-5811-XXX-689

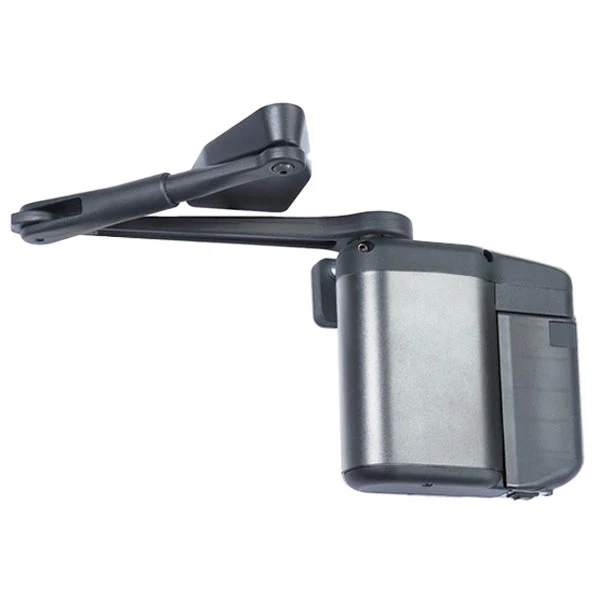

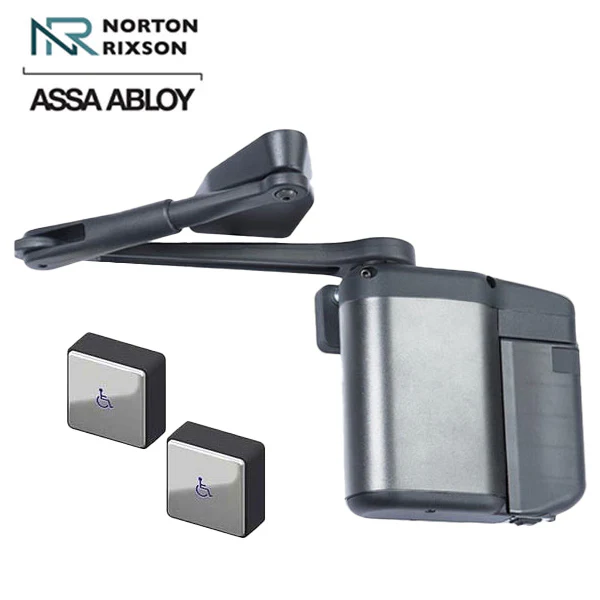

The 5800 Series ADAEZ PRO is an extreme duty, low energy door opener designed for moderate to high traffic manual opening applications that occasionally requires powered operation. A regenerative drive system charges an onboard battery pack eliminating the need for electrical power. Verified by GreenCircle to offer energy savings. These kits include: either two (2) narrow style pushbuttons or square style pushbuttons with wireless RF transmitters, and the 5800 series door operator with the 689 Aluminum cover.
In order to connect a 5800 series to an Access Control system you will need theĀ 5800 Series ADAEZ Operator Wireless Interface Module (WIM) - NOR-ADA1028W
Features
- Regenerative drive or continuous duty operation
- Non-handed
- 95Ā° max. door opening
- Pull side mounting
- Radio Frequency stainless steel push buttons
- Integral RF receiver
- Shock absorbing arm
- Built-in ON/OFF Switch
- Auxiliary activation input port
- Patented Auto-Tune feature ensures safety and compliance with A156.19 code
- Protection from high-wind & abusive environments
- Built-in battery eliminates the need for electrical power
- Brushless DC motor/gearbox tested 10+ million cycles
- Power Close ensures consistent door latching
Specifications
| Construction | Heavy-Duty cast-aluminum body |
| Function | Hydraulic Electronic Door Operator |
| Interior or Exterior | Both |
| Handing | Non-Handed |
| Finish | 689 - Aluminum |
| Cover | 689 - Aluminum |
| Maximum Door Weight | 250lbs |
| Door Width | 30 - 48" |
| Projection from Wall | 10-1/2" |
| Mounting Style | Pull Side |
| Max. Door Opening | 95Ā Degrees |
| ADA | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating | UL10c 90-minute positive pressure fire rating |
| Certifications | ANSI/BHMA A156.19 certified. ETL tested to UL / cUL standard for automatic doors on fire & smoke barrier doors. |
| Warranty | 2-Year Limited Warranty |
