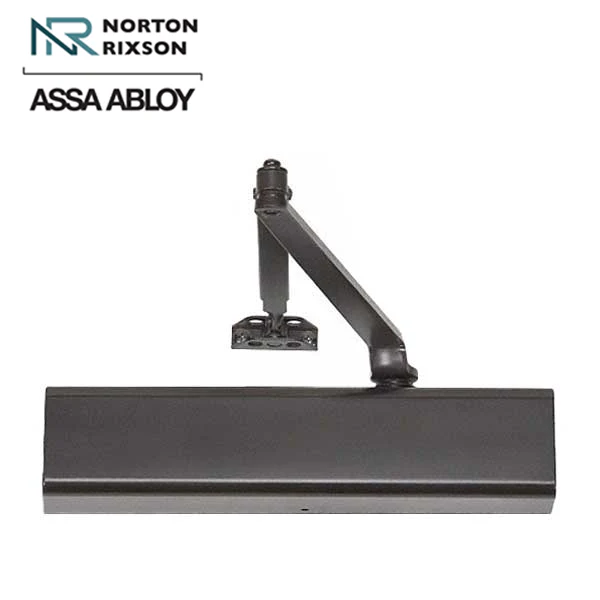

Norton - 210 - Tri-Packed Manual Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Adjustable Arm - Adjustable Size 1-6 - Plastic Cover - Dark Bronze - Fire Rated - Grade 1
The 210 Series door closer, is ideal for stocking distributors serving high volume aftermarket and storefront segments. The 210 features an adjustable spring, tri-packed, non-hold open arms and independent and separate latch, sweep and backcheck intensity valves. Featuring easy installation and maintenance and dependable control, the 210 is perfect for office doors, utility doors and strip mall applications
Features:
- Adjustable spring size 1-6
- Non-handed
- Cast aluminum body
- Rack-and-pinion design
- Independent latch sweep and backcheck intensity valves
- Full plastic cover
- Closer footprint: 3/4" x 12"
- Projection: 2-1/8"
- Non-hold open
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Manual Door Closer |
| Closer Type: | Non-Hold |
| Handing: | Non-Handed |
| Ligature Resistant: | No |
| Closer Mounting Style: | Parallel, Regular, Top Frame |
| Finish: | Dark Bronze |
| Arm Type: | Adjustable Sizes 1 to 6, Standard |
| Door Width: | 48 in |
| Housing Height: | 2 1/8 in |
| Housing Depth: | 2 7/8 in |
| Housing Length: | 13 in |
| Max. Door Opening: | 180 Degrees |
| Piston Diameter: | 1 3/8 in |
| Projection from Wall: | 2 1/8 in |
| Pinion Journals Diameter: | 5/8 in |
| Fire Rating: | 3 hrs. |
| Certifications: | ANSI A156.4 Grade 1, UL and cUL Listed |
