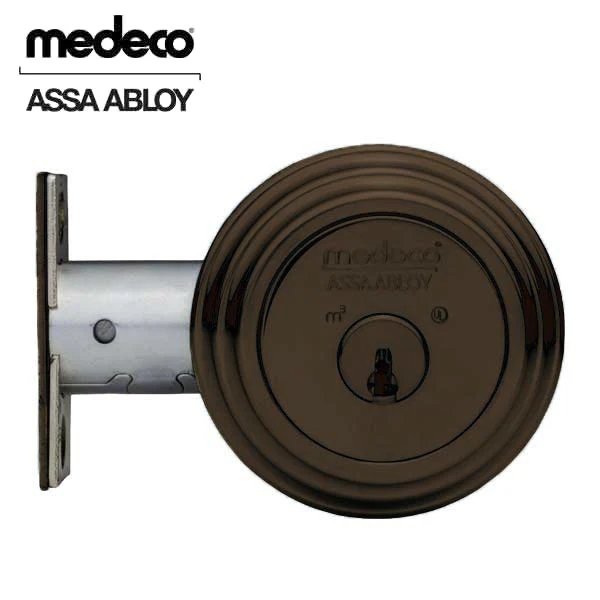

Medeco - 11TC603 - Maxum Commercial - M3 Biaxial - 6-Pin - Single Deadbolt - Optional Backset - DL Keyway Pinned - 05 - Bright Brass - Grade 1
The Medeco Maxum deadbolt exceeds Grade 1 ANSI/BHMA A156.36 standard for auxiliary locks. Solid brass, free turning collar and 1/4 inch diameter mounting bolts resist wrenching, prying, and hammering attacks. One-inch throw hardened steel bolt resists sawing and crowbar attacks.
Hardened steel inserts and rotating pins provide drill and pick resistance in accordance with the UL437 standard for safety for key locks. The Medeco m3 design offers a utility patent that provides protection against unauthorized key duplication.
Features
- Grade 1
- DL Keyway
- Dark Bronze Finish
| Specifications | |
|---|---|
| Cylinder Type | Conventional Cylinder |
| Number of Pins | 6 |
| Keyway | DL |
| Keying | Keyed Different |
| Number of Keys | 2 |
| Backset | 2-3/4" |
| Faceplate | 2-1/4" x 1" |
| Finish | 624/US20A/US20D - Dark Oxidized Statuary Bronze Clear Coated |
| Downloads |
|---|
| Template |
| Installation Instructions |
Return Policy: We do not accept returns on unsealed products. In order to return a defective item, a support ticket is needed. To receive a ticket, please contact Medeco directly at 800-839-3157 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
