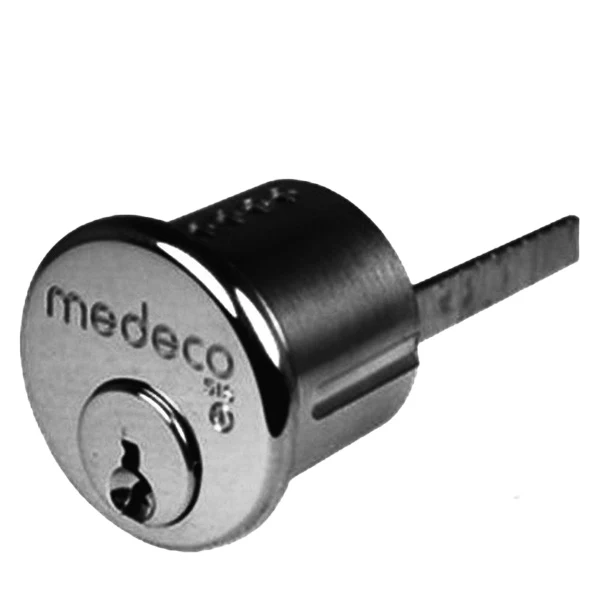

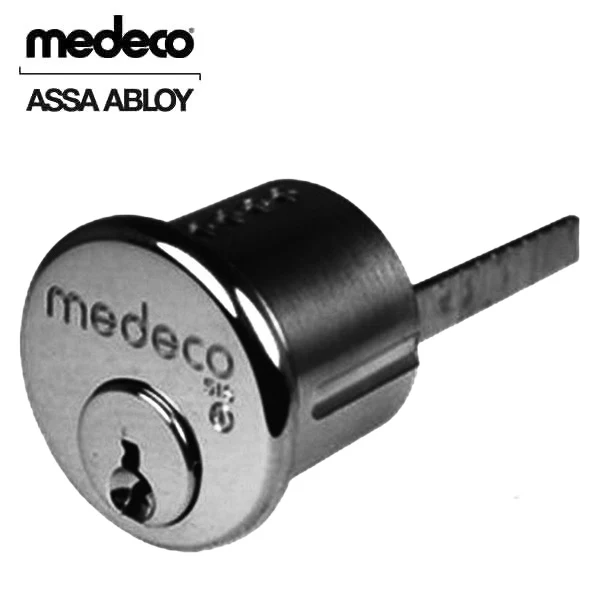

Medeco - 100400H - M3 Biaxial - 6-Pin - 1-1/8" Rim Cylinder Y02 Horizontal Tailpiece - 04 Sky Keyway Sub-Assembled - 26 - Satin Chrome - Grade 1
Medeco M3 Rim cylinders are used with auxiliary rim locks such as: surface mounted deadbolts, night latches, panic devices and jimmyproof locks (also know as vertical dropbolts or interlocking deadbolts). Rim cylinders are held in place with a back plate and two mounting screws.
Features
- CT-Y02 Horizontal Tailpiece
- UL listed
- Grade 1 Certification
- BHMA A156.30 Level A Certification
- Can be incorporated into existing master key system
- Protect against drill, wrenching, bumping and prying attacks
- Solid Brass Construction
| Specifications | |
|---|---|
| Cylinder Type | Rim Cylinder |
| Cylinder Length | 1-1/8" |
| Tailpiece | CT-Y02 Horizontal Tailpiece |
| Number of Pins | 6 |
| Keyway | 04 Skyway Sub-Assembled |
| Keying | Keyed Different |
| Number of Keys | 2 |
| Finish | US26D - Satin Chrome |
Ā
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Medeco directly at 800-839-3157 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
