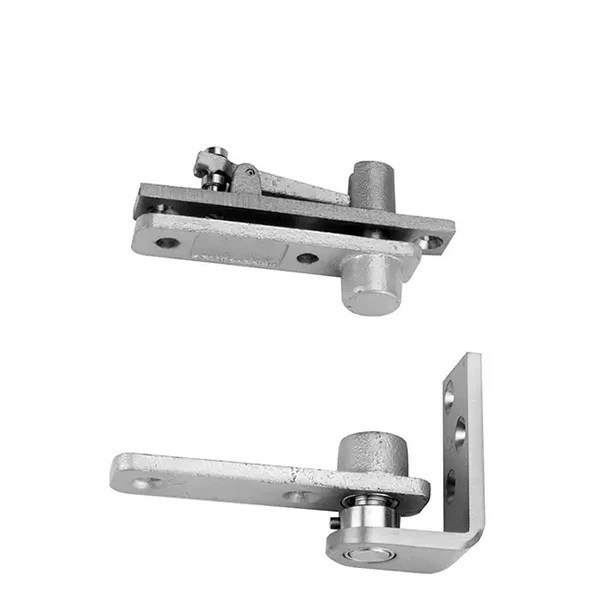

McKinney - EP-5J - Jamb Mount Pivot Hinge Set - Satin Chrome

Recommended for use on average frequency double acting doors in schools, hospitals, institutions and other public buildings. Not for use on labeled doors and frames.

Features:

• Thrust steel ball bearing in bottom pivot, oil impregnated bronze bearing in top pivot

• Center Hung

• Mortised into side jamb

• Full mortise top pivot

• Non-handed

• 1-5/32" radius heel edge of door

• Maximum Door Weight (interior or exterior) up to 135 lbs 3'6" x 8'0"

• All EP-5J Pivot sets are packed with 14 x 1-1⁄2" wood screws and 1⁄4-20 x 5⁄8" machine screws

• Ferrous base pivot set polished and plated

Specifications:

Downloads:

• Installation Instructions
• Template
