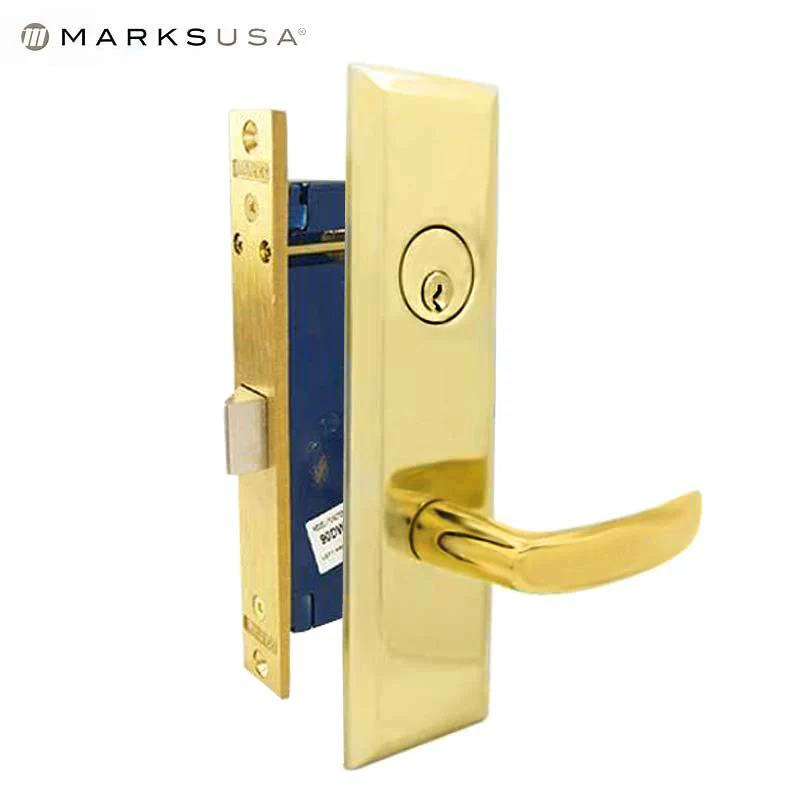

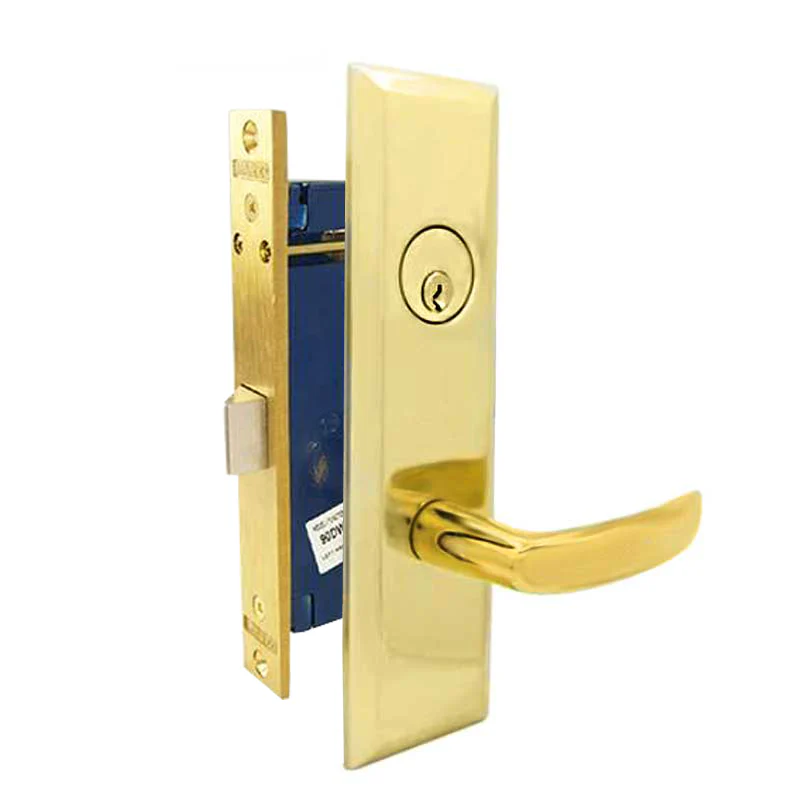

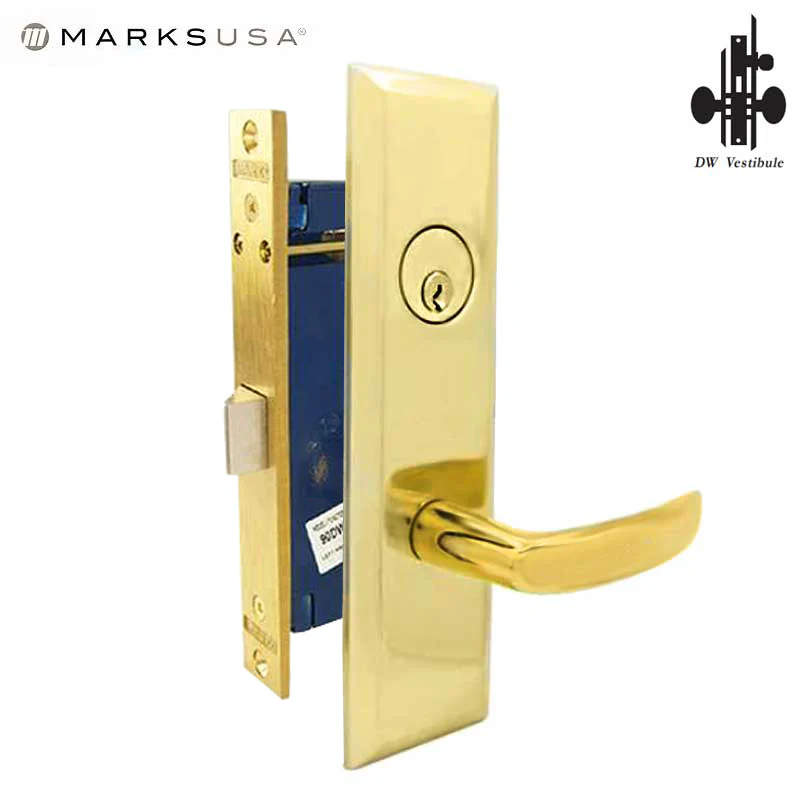

Marks USA - 9NY96DW-3 - New York Mortise Lever Lock - 1-1/16” x 7-5/8” - U3 - Polished Brass - Vestibule - RH
Combine security with style with the Marks New York 9 Series Mortise Locks. Perfect for apartments and residential buildings.
-
Polished Brass
- Solid Brass plates
- Right Hand Mortise Lockset
- Solid brass cylinder - 2 keys
Specifications
| Trim | Series 9 New Yorker Mortise Lever Lockset |
| Function |
Vestibule - Latch by knob/lever inside, key outside. |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Latch Only |
| Latch | Solid brass 1/2” throw, reversible |
| Backset | 2-1/2" backset |
| Lock Front: | 1-1/16” x 7-5/8” |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 9 Series (2-1/2" Backset) |
| Case | High pressure cast Zamac, baked powder coat finish. |
Diagram (Note Diagram Shows Deadbolt Models )
Downloads
- Installation Instructions(follow instructions for Series 9)
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Marks USA directly at 1-800-645-9445 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
