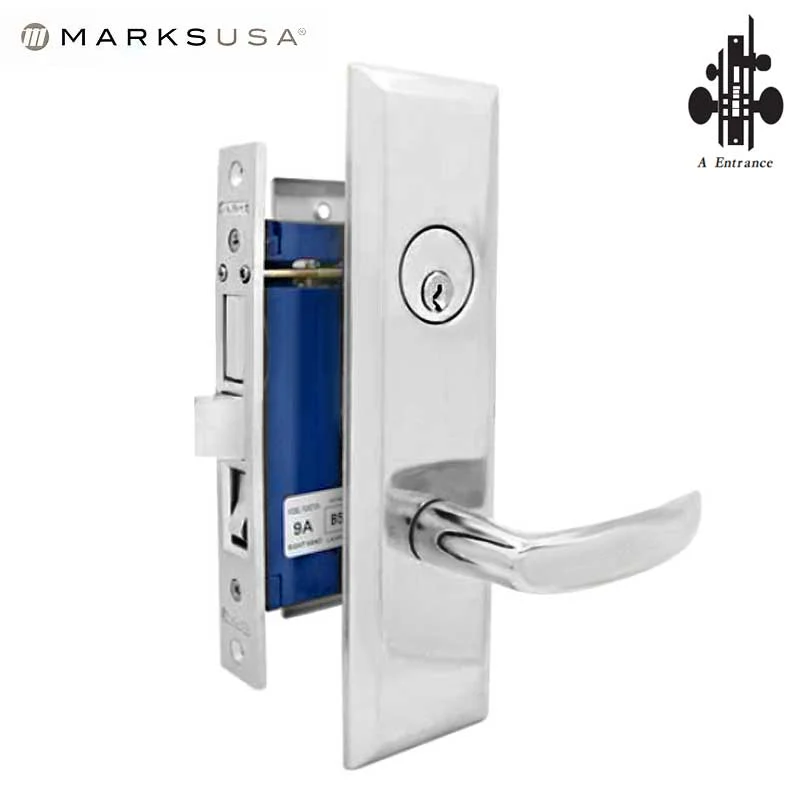

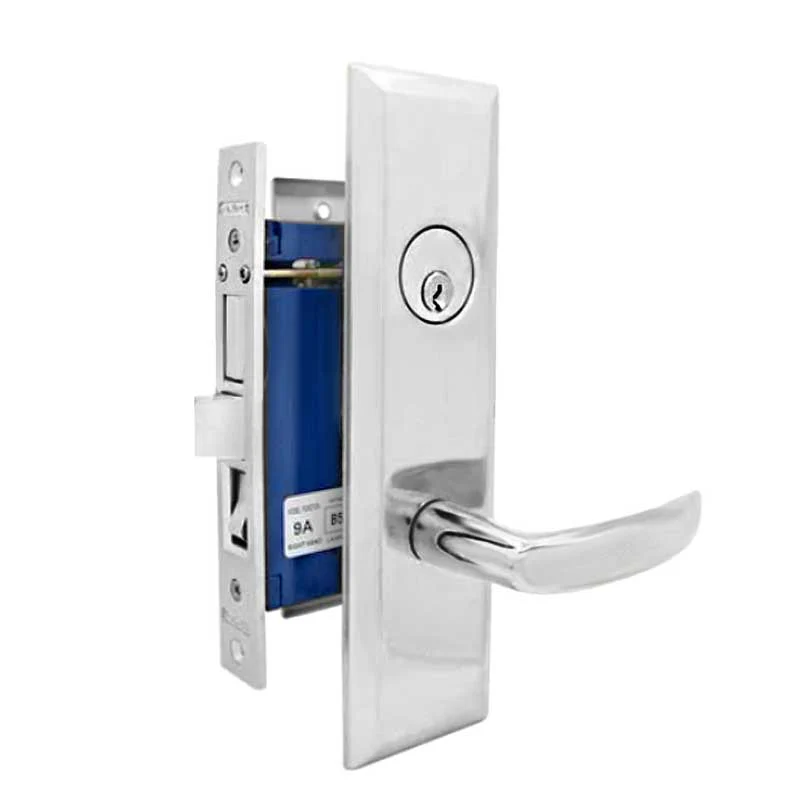

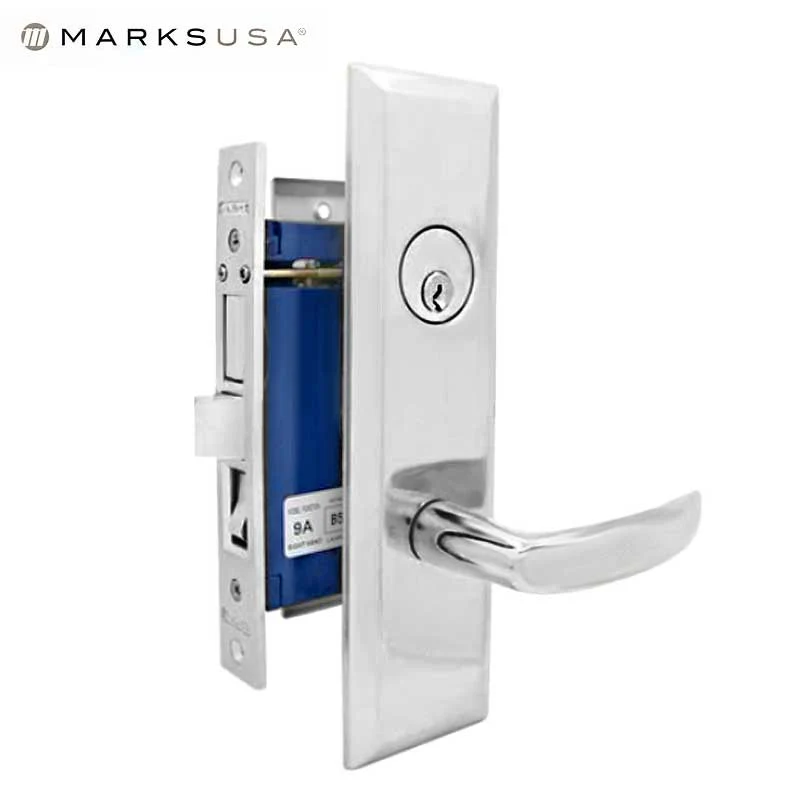

Marks USA - 9NY96A-26D - New York Mortise Lever Lock - 1-1/16” x 7-5/8” - 26D - Satin Chrome - Entrance - LH

Combine security with style with the Marks New York 9 Series Mortise Locks. Perfect for apartments and residential buildings.

• Satin Chrome
• Solid Brass plates
• Left Hand Mortise Lockset
• Solid brass cylinder - 2 keys



Specifications

Trim	Series 9 New Yorker Mortise Lever Lockset
Function	Entrance - Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch.
Cylinder	C keyway cylinder with 2 keys
Bolt	Cast alloy full 1” throw
Latch	Solid brass 1/2” throw, reversible
Backset	2-1/2" backset
Lock Front:	1-1/16” x 7-5/8”
Door Thickness	1-5/8" to 2-1/4" standard.
Lock Specifications	9 Series (2-1/2" Backset)
Case	High pressure cast Zamac, baked powder coat finish.



Diagram (Note Diagram Shows Deadbolt Models )

Downloads

• Installation Instructions(follow instructions for Series 9)
