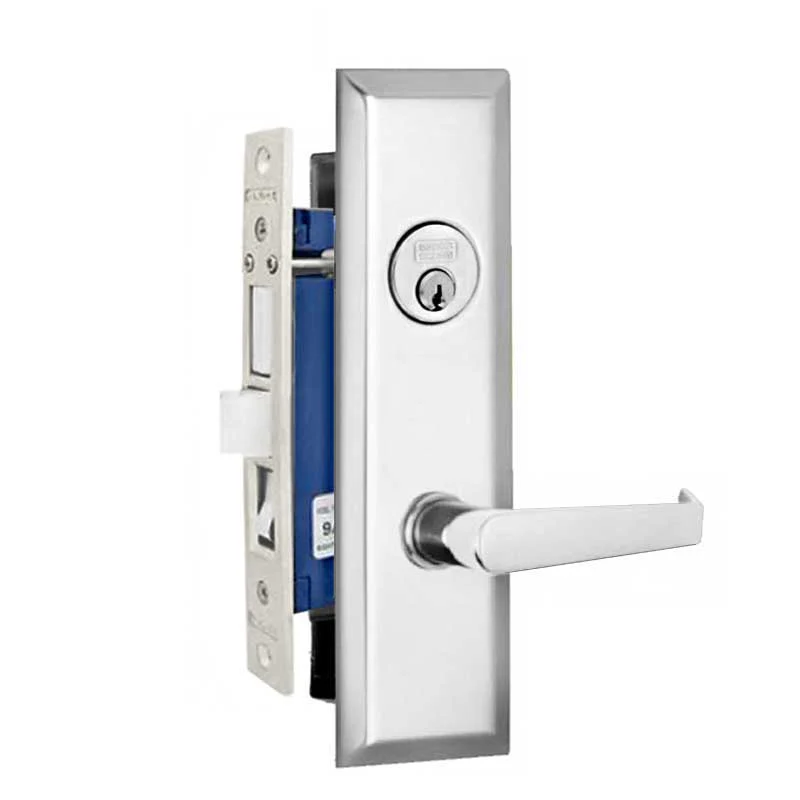

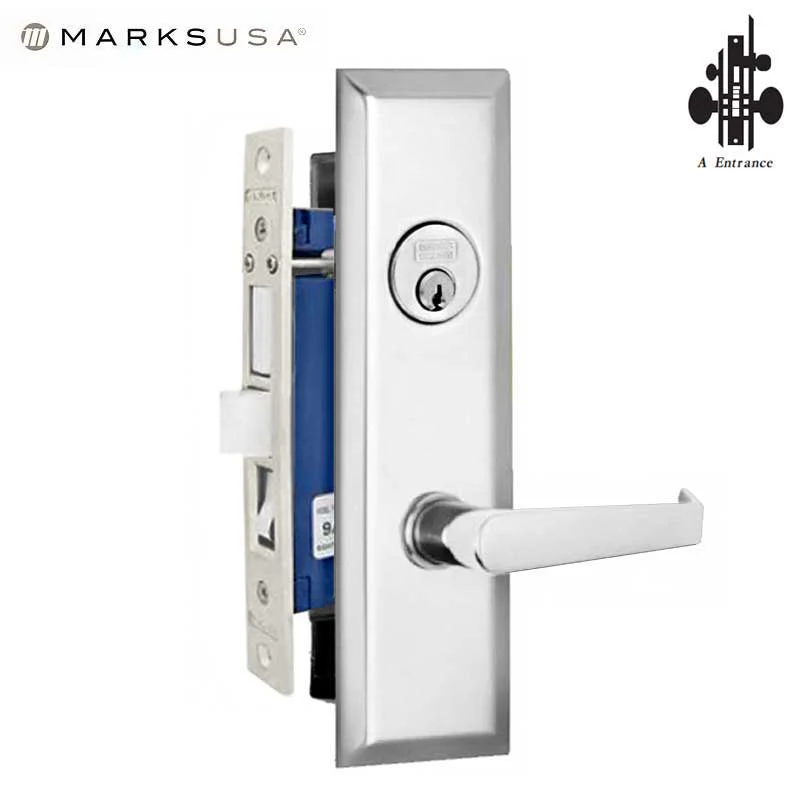

Marks USA - 9NY92A/26D - New York Mortise Lever Lock - 1-1/16” x 7-5/8” - 26D - Satin Chrome - Entrance - LH
Combine security with style with the Marks New York 9 Series Mortise Locks. Perfect for apartments and residential buildings.
- Satin Chrome
- Solid Brass plates
- Left Hand Mortise Lockset
- Solid brass cylinder - 2 keys
Specifications
| Trim | Lever Lockset |
| Exterior | Steel reinforced brass plates with cylinder recess, 10" x 2-3/4". Chrome finish finish (26D). Screwless Exterior Lever |
| Interior | Steel reinforced plate 7" x 2-1/4". Satin Chrome finish (26D). Screwless Interior Lever |
| Cylinder | 1-1/8" long solid brass, 6 pin with 2 keys. |
| Strike | 4-7/8" x 1-1/4" x 3/32" thick, 5/8" curved lip. Conforms to ANSI spec., A115.1. |
| Lock Front | 1-1/16” x 7-5/8” |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 9 Series (2-1/2" Backset) |
| Faceplate | 1-1/4" X 8" steel backplate with brass cover plate. |
| Deadbolt | Cast 1" throw, steel reinforced. |
| Latch | Solid brass, 1/2" throw (reversible). |
| Case | High pressure cast Zamac, baked powder coat finish. |
