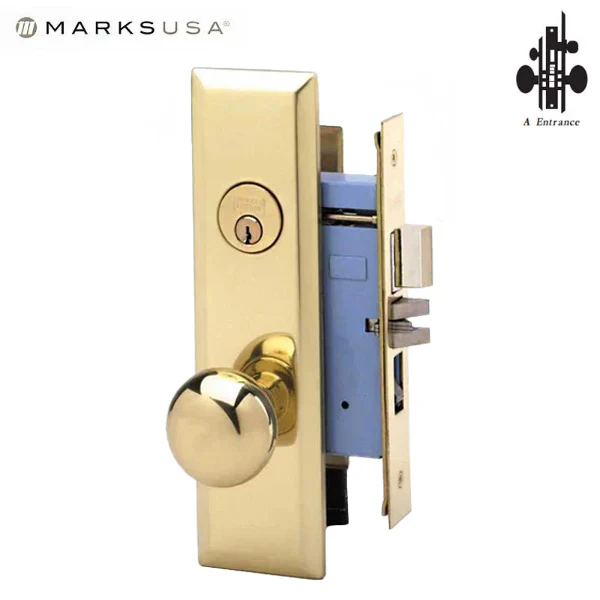

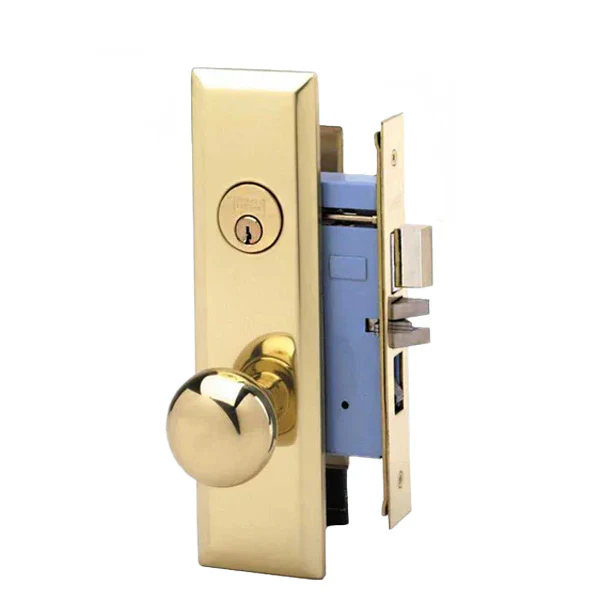

Marks USA - 7NY10A/3 - New York Mortise Knob Lock- US3 - 1-1/4” x 8-5/8” - Entrance - RH - Polished Brass
Combine security with style with the Mark's New York 7 Series Mortise Locks. Perfect for apartments and residential buildings.
- Polished Brass
- Solid Brass plates
- Right Hand Mortise Lockset
- Solid brass cylinder - 2 keys
Specifications
| Trim | Series 7 New Yorker Mortise Knob Lockset |
| Function | Entrance - Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch. |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Cast alloy full 1” throw |
| Latch | Solid brass 1/2” throw, reversible |
| Lock Front | 1-1/4” x 8-5/8”, Flat |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 9 Series (2-3/4" Backset) |
| Case | High-pressure cast Zamac, baked powder coat finish. |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Marks USA directly at 1-800-645-9445 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Combine security with style with the Mark's New York 7 Series Mortise Locks. Perfect for apartments and residential buildings.
- Polished Brass
- Solid Brass plates
- Right Hand Mortise Lockset
- Solid brass cylinder - 2 keys
Specifications
| Trim | Series 7 New Yorker Mortise Knob Lockset |
| Function | Entrance - Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch. |
| Cylinder | C keyway cylinder with 2 keys |
| Bolt | Cast alloy full 1” throw |
| Latch | Solid brass 1/2” throw, reversible |
| Lock Front | 1-1/4” x 8-5/8”, Flat |
| Door Thickness | 1-5/8" to 2-1/4" standard. |
| Lock Specifications | 9 Series (2-3/4" Backset) |
| Case | High-pressure cast Zamac, baked powder coat finish. |
