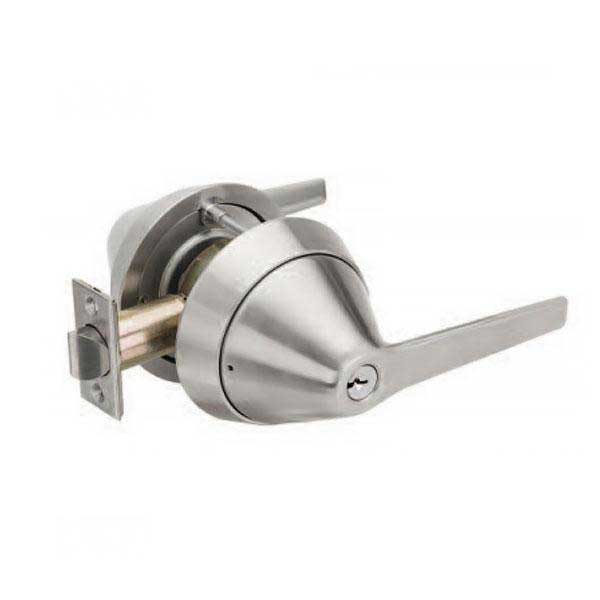

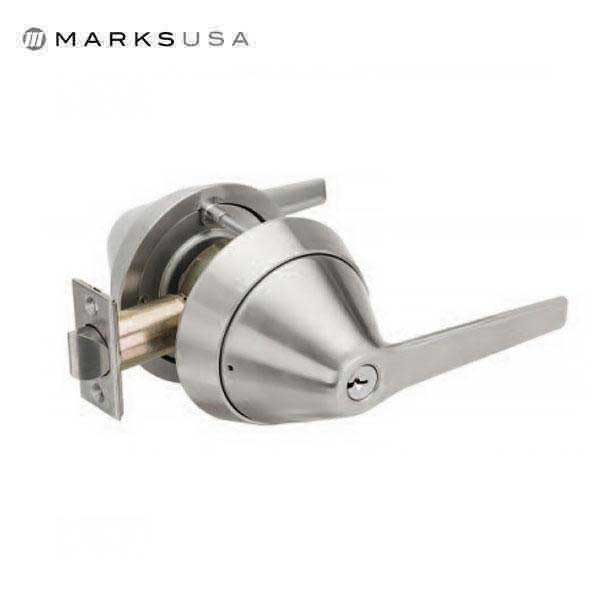

Marks USA - 195SSDW - Institutional Series Lifesaver Cylindrical Lever Set - Anti-Ligature - Asylum / Institutional - Grade 1
Marks USA has developed LifeSaver ANSI Grade 1 institutional Anti-Ligature life safety locksets to address managed liability, accident prevention, life safety and security in Behavioral Health Care Institutions, X-ray settings and correctional facilities. This lock always need a key to unlock the lock on either side.
More Details Below
| Function |
ANSI F87 Asylum / Institutional, Anti-Ligature Both levers always locked. |
| Latch | #1834, stainless steel nose |
| Backset | 2 3/4 Standard |
| Strike |
#1135, 4-7/8 ASA curved lip strike |
| Door thickness | 1 3/4 |
| Levers | Solid cast stainless steel. Levers Rotate up & down freely in locked or unlocked position Levers recessed into solid stainless steel roses eliminating any open gap |
| Roses | Thru-bolted, spring loaded, #10 thru-bolts |
| Cylinder | Conventional Key n Knob Double Cylinder, Marks C Keyway, 6 pin w/ 2 keys |
| Finish | 630 - 32D- Stainless Steel |
| Certifications |
ANSI A156.2 Grade 1, UL Listed 3Hr Fire Rating |
| Manufacturer Warranty | Marks lifetime mechanical warranty |
Downloads
- Catalog Sheet
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Marks USA directly at 1-800-645-9445 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
