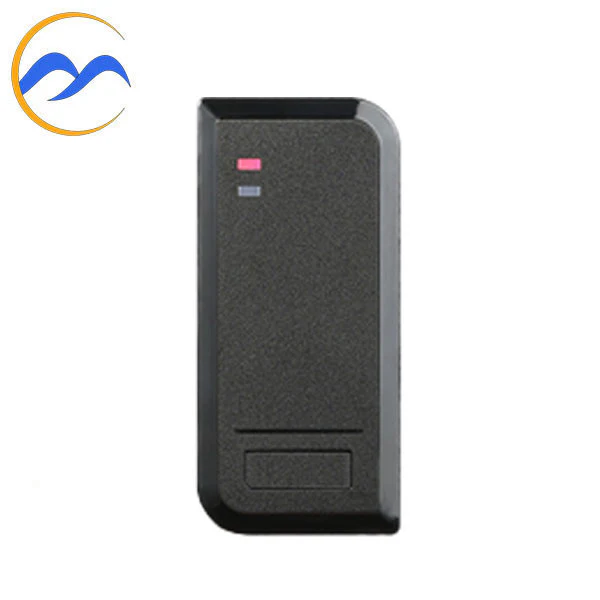

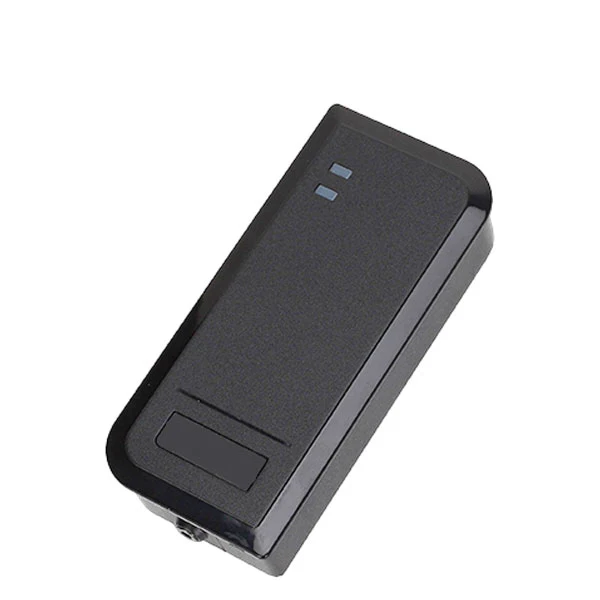

Malibu - RFID Reader - Waterproof - 9-18VDC - 125KHz and 13.56MHz Epoxy Cased (EM4100)

This Malibu RFID Reader is a slim Wiegand output proximity reader that is compatible with any Wiegand controller. The reader is fully potted and can operate at extreme temperatures which allows it to be mounted either outdoors or indoors. this reader will work against metal door frames

Features:

• Waterproof, conforms to IP66
• Wiegand 26~37 bits output (default: 26bits)
• The card type is Mifare 13.56Mhz / 125KHz EM card
• Working temperature: 40 ^oC ~ 60 ^oC (-40 ^oF ~ 140 ^oF)
• Reading Range: 7 cm
• EM4100

Specifications:

Operating Voltage	9~18V DC
Frequency	13.56Mhz / 125KHz
Card Type	MiFare / EM card
Reading Range	7 cm
Output Format	Wiegand 26 bits (26~37 bits available upon request)
Standby Current	<25mA
Operating Humidity	10%~95% RH
Index of Protection	IP66
Dimensions	L103 x W48 x H19 (mm)

Downloads:

• Spec Sheet
