Malibu - Dual Frequency RFID Reader - Waterproof - 9-18VDC - 125KHz and 13.56MHz Metal Mullion

This Malibu Keypad Card Reader can read 125KHz Hid, EM cards, and 13.56MHz Mifare cards at the same time. Because of the metal case is anti-vandal and waterproof, it can be mounted either indoors or outdoors in harsh environments. This is a Multi-Prox dual-frequency RFID card reader. Mullion Mount is a metal anti-vandal case that is IP66 Waterproof and Wiegand 26~44, 56, 58 bits output. The card types that it reads 125KHz Hid EM cards, 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare class 4K cards.

Specifications:

Operating Voltage	9-18V DC
Frequency	125KHz & 13.56 MHz

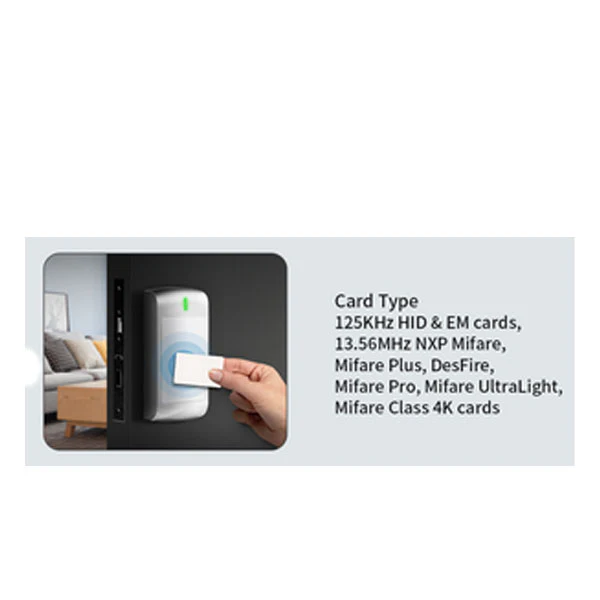

Card Type	125KHz - Em & Hid Card 13.56MHz                                      - NXP MiFare, MiFare Plus, DesFire, M
Reading distance	2~6 CM
Output Format	Wiegand 26~44, 56, 58 bits
Operating Temperature	-40 °C ~ 60 °C (-40 °F ~ 140 °F)
Standby Current	≤50mA
Operating Humidity	0%~98% RH
Index of Protection	IK10 & IP66
Dimensions	L4.13 x W1.93 x H0.83 (in)
Net Weight	8.5oz
Shipping Weight	9.5oz

Downloads:

• Spec Sheet
