Lockly Pro - PGD228WSLSS - GUARD - Slide Edition - Narrow Stile - Athena Biometric Electronic Double Hook Mortise Lever Set - Backset 1-3/8" - RFID - Fingerprint Reader - Wi-Fi - Bluetooth - Stainless Steel

PGH230 Wifi Hub - Included

Built-In Optional Wired Sensor - Included

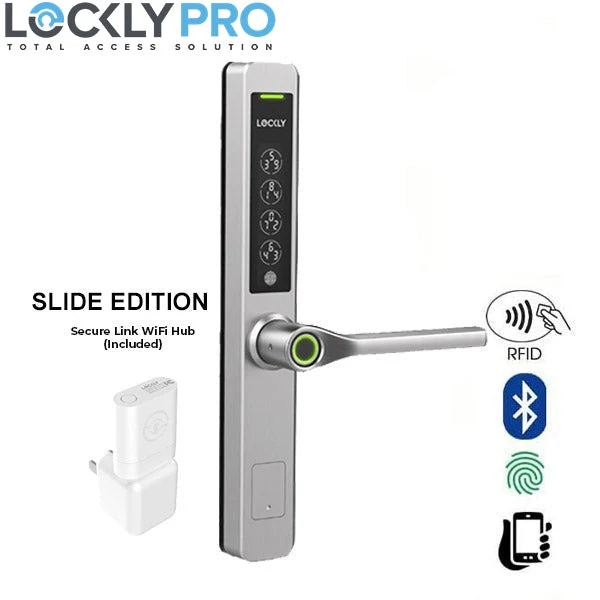

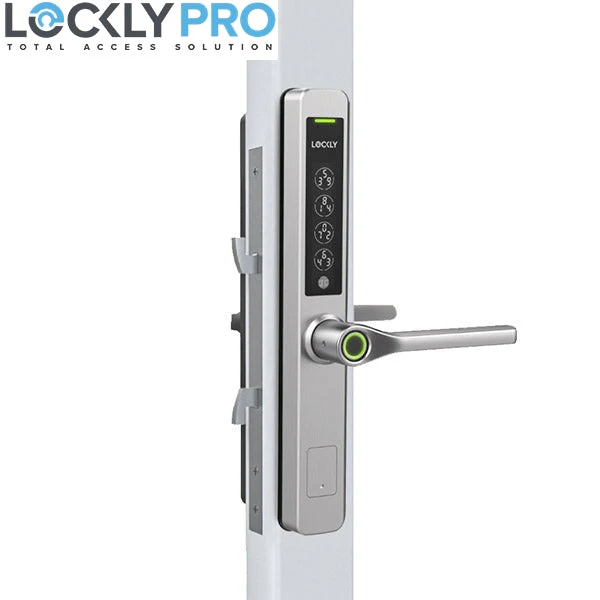

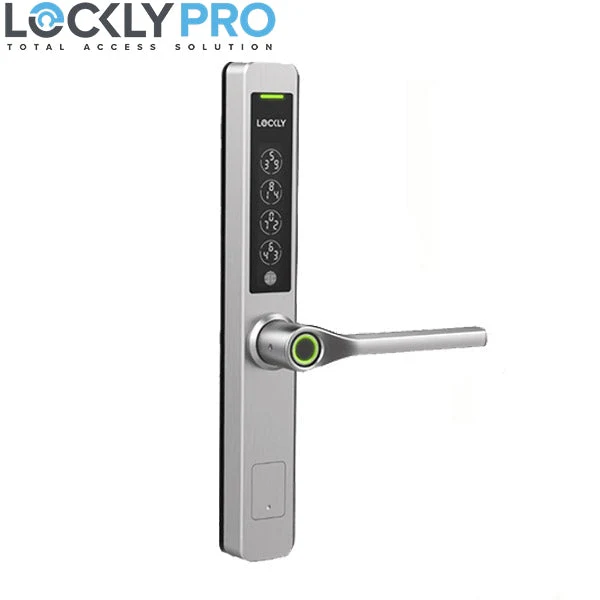

LOCKLY GUARD™ Athena (228SL) Slide Edition - Access for thin framed sliding doors
Provides main entrance lever access and security for thin framed metal, aluminum, or wooden sliding doors.

Features:

• Hack-proof PIN Genie digital touchscreen
• 3D biometric fingerprint sensor access - Stores up to 99 fingerprints
• IPX4 rated for water protection
• Issue Offline Access Codes™ that do not require users to download an app or have WiFi or Internet connection to use
• Fast Pass MIFARE RFID access
• eKeys - Grant one-time use or specific time duration access by issuing codes, digital eKeys via a mobile device
• Grant access even when you're not home - Remotely lock and unlock your door from anywhere using the Lockly app
• Full control with smartphone and Lockly OS

Specifications

Access Codes	Stores up to 52 PIN access codes
RFID/Fob key Access	Stores up to 999 MIFARE RFID/fob
Fingerprint Access	Stores up to 99 biometric fingerprints
Remotely Shareable Temporary Access	Unlimited Offline Access Codes / eBadges
Access Logs	Unlimited - Accessible via LocklyPro Commercial app or Lockly OS™
Visual and Audible	Exterior: LED (Red, Green) Interior: LED (Blue) Configurable Lock/Unlock Audio Indicator
Communication Standards	BLE 4.2, Wi-Fi 2.4GHz, RF433.92MHz, Advanced Encryption Standard (AES) 256-bit
Command Response	Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2s on Fingerprint Recognition
Connectivity Options	LocklyPro Commercial app, Lockly OS - Real-time communication
Battery Life	AA Alkaline Batteries x 4 - Up to 1 year (offline mode), up to 9 months (regular use with App & Sensor)
Operating Temperature	-4°F to 151°F (-20°C to 66°C)
Operating Humidity	0 - 100% non-condensing

Standards	ISO 14443
Maximum Read Range	RFID: up to 0.79" BLE: up to 98’ (30m), Wi-Fi: up to 197' (60m)
RFID/Fob Compatibility	MIFARE® S50
Mobile Compatibility	LocklyPro Commercial app BLE 4.2 Lockly OS™

Mechanical Specifications

Handing	Field reversible
Materials	Stainless Steel chassis and escutcheon
Door Thickness	1⅜" - 2 9/16" (35mm - 65mm)
Swing Backset / Slide Backset	1⅛” (30mm), 1⅜” (35mm), 2⅜” (60mm) 1⅛” (28mm), 1⅜” (35mm)
Deadbolt/Latch Hook Bolt	¾″ (20mm) Deadbolt Throw ½” (13mm) Latch Throw ⅔” (17mm) Hook Throw
Door Frame Width	2" - 3" (50.8mm - 76.2mm)
Physical Keys	Laser cut keys compatible, 2 pcs included

Includes the Following:

• Lockly Guard Athena Slide Edition smart lock
• Mortise assembly
• Secure Link Wifi Hub
• Wired door sensor
• MIFARE RFID Card x 3
• Laser Cut Keys x 2
• Installation screws
• Strike plate
• Strike plate housing
• Back plate
• AA alkaline batteries x 4
• Quick start guide
• Installation and user manuals

Downloads

• Lockly Smart Phone App -- iPhone Here / Android Here
• User Manual
• Installation Manual
• Spec Sheet

For Easy Installation of any Lockly products - Download the BILT App. The BILT app provides graphical step-by-step installation instructions. Available on App Store and Google Play, featuring 3D video guidance.
