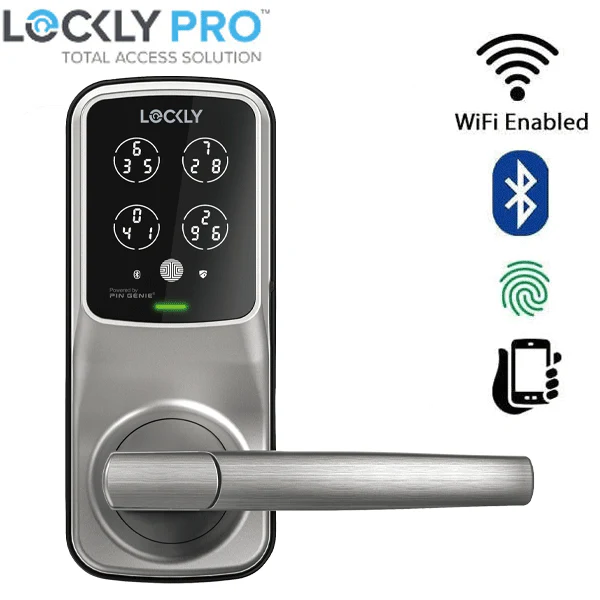

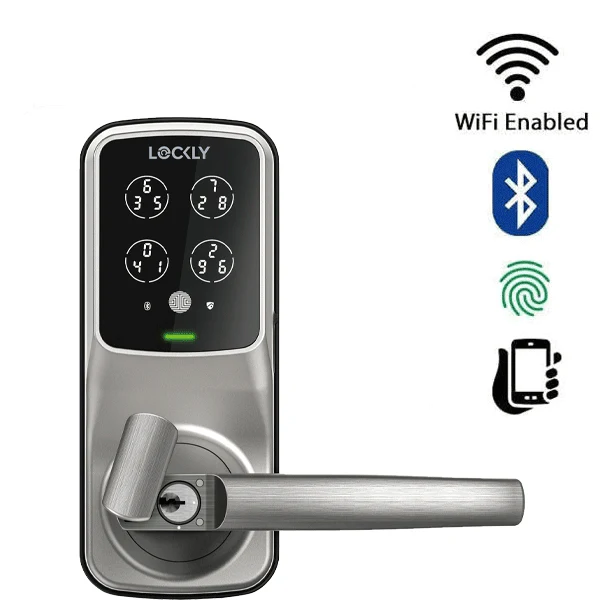

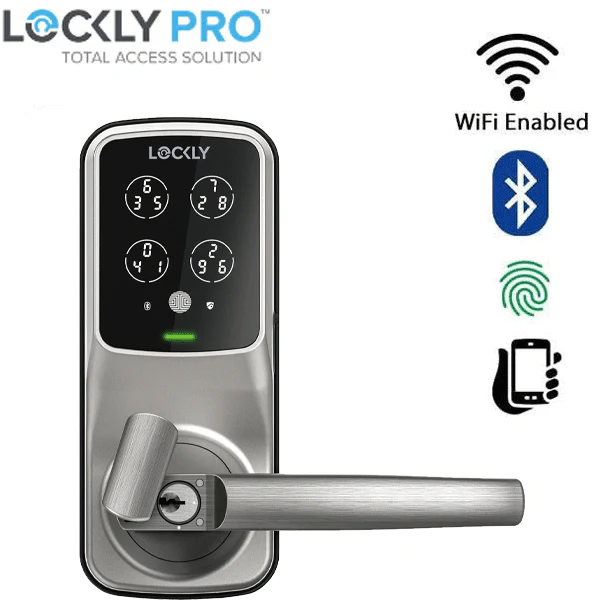

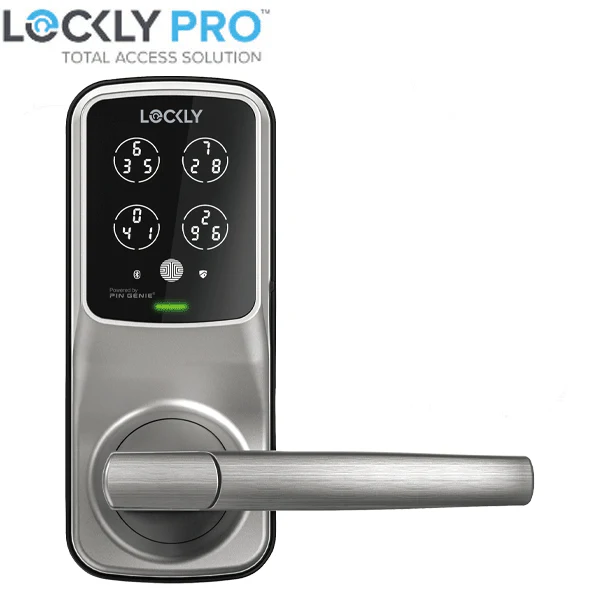

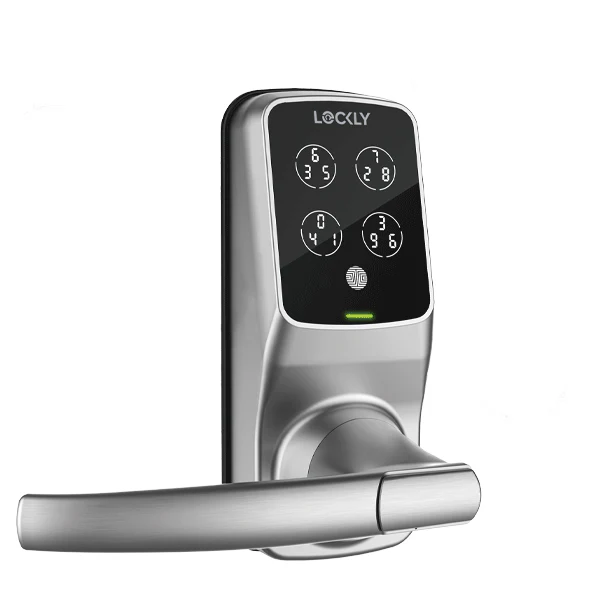

Lockly - 688FSN - Lux Compact Fingerprint Biometic Mortise Lever Set - Keypad - Bluetooth App Controlled - Satin Nickel

The Lockly Lux Compact is a mortise smart lock designed to replace lever set mortises,  allowing for quick and easy installation.  It features Lockly's hack-proof PIN Genie keypad, fingerprint access, and smartphone control for enhanced security and convenience.

Features:

AI BIOMETRIC FINGERPRINT: Your finger is your key—instant fingerprint recognition and unlocking, improving speed and accuracy with every touch; can store up to 99 fingerprints; trusted by the Lockly community with 100M+ access granted.
HACK-PROOF TOUCHSCREEN: Exclusive PIN Genie® digital keypad with innovative, patented technology to prevent password guessing by shuffling  numbers after every use; enjoy additional protection with Safe Mode and Random Mode, and create up to 33 free PIN codes.
APP CONTROL: Unlock, monitor, or check history logs from anywhere on your smartphone; grant access with eKeys or eBadges and Offline Access Codes; and seamlessly transfer user profiles (except fingerprints) between Lockly devices with Air Transfer.
LEAVE AND FORGET: No more worrying if you have locked the door properly behind you thanks to the programmable auto locking in the Lockly app that always gives you peace of mind knowing your home is secured.
GRANT ACCESS WITHOUT INTERNET: Issue Offline Access Codes to access your home, even without internet, and remotely generate code and share with your guest for one-time or recurring access from anywhere, anytime.
REMOTE MONITORING & VOICE CONTROL: With Lockly’s Secure Link Wi-Fi Hub (sold separately), connect with Amazon Alexa or Google Assistant-enabled devices to command your smart lock with your voice; enjoy the convenience of checking and unlocking your door from anywhere, anytime.
MECHANICAL KEYS: Two physical backup keys included for enhanced protection, and with rekey capability, allow easy key cylinder replacement without replacing the entire lock.
BEST-IN-CLASS SUPPORT: 5-year mechanical & finish and 2-year limited electronics warranty and lifetime technical support—our support team is available 24/7 via live chat, phone and email.

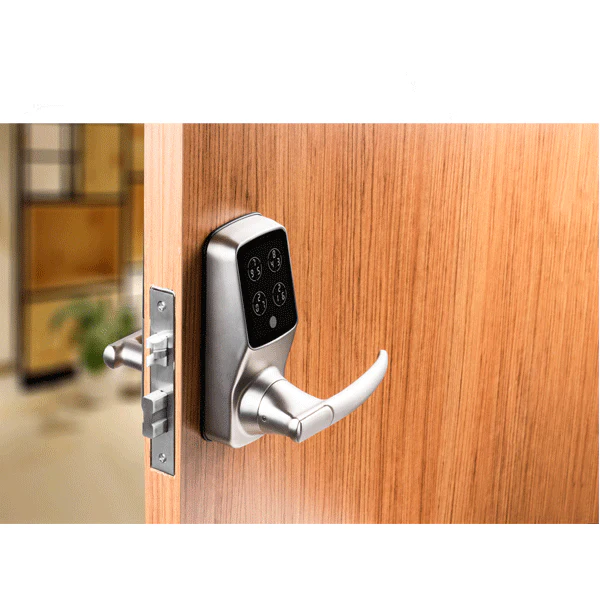

DESIGNED FOR ADVANCED DIY: With step-by-step installation video, the Lockly Lux Compact can be installed as mortise lever set replacement or for any standard wooden door with 1-3/8"" - 2” thickness and  2-3/8"" backset, with our technical support team ready to help at any time."



What's Included:

• Lux Compact Mortise Edition

• Quick Start Guide

• Installation Manual

• User Manual

• Welcome Card

• AA Alkaline Batteries x 4

• Drilling Template

• Activation Card

• Physical Key x 2

• Mortise Lockset

• Fixing Screws

• Mounting Plate

• Strike Plate & Dust Box



Electronic Specifications:

Access Codes	Stores up to 33 PIN access codes
Fingerprint Access	Stores up to 99 biometric fingerprints
Remotely Shareable Temporary Access	Unlimited Offline Codes / eBadges
Access Logs	Unlimited Accessible via Lockly app or LocklyOS
Visual and Audible	Exterior: LED (Red, Green) Interior: LED (Red) Configurable Lock/Unlock Audio Indicator
Communication Standards	BLE 4.2 , Wi-Fi 2.4GHz , RF433.92MHz Advanced Encryption Standard (AES), 256-bit
Gateway Communication Range (networked solution)	Up to 98' (30m) BLE Up to 197' (60m) Wi-Fi Up to 164' (50m) RF433.92MHz Unobstructed open environment
Command Response	Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition
Connectivity Response	Lockly Mobile App, LocklyOS, Matter Controller ALL in real-time communication
Available Signal Status	Battery Status via App Open//Close Door Status Bluetooth Connectivity Indicator  Sensor LED (Red/Green)
Battery Life	AA Alkaline Batteries x 4 Up to 1 year (offline mode) Up to 10 months (regular use with App & Sensor)
Operating Temperature	-4°F to 151°F (-20°C to 66°C)
Operating Humidity	0 - 100% non-condensing

Credential Specifications:

Credential Technologies	BLE (2.4 GHz) Wi-Fi (2.4 GHz) Capacitive Sensor  Patented PIN Genie Keypad
Maximum Read Range	BLE: up to 98' (30m) Wi-Fi: up to 197' (60m)
Mobile Compatibility	Lockly app BLE 4.2 LocklyOS, Matter

Mechanical Specifications

Handing	Field reversible
Materials	Premium Zinc Alloy chassis and escutcheon
Door Thickness	1-3/8" - 2” (35mm- 50mm)
Backset	2-3/8"  (60mm)
Deadbolt/Latch	Deadbolt Throw: 2/3" (17mm) Latchbolt: 1/2" (12mm) Lockset Body: 4” x 3-3/16”  x ⅞” (101 x 81.5 x 22mm)
Strike	5-13/16" x ⅞” (147 x 22mm)
Bore	See Installation Drilling Template
Physical Keys	SC1  Re-keying compatible, 2pcs included



Certifications/Warranty

Certification	RoHS, FC, ADA Compliant
Warranty	Lifetime 24/7 technical support 5-year Limited Mechanical & Finish 2-year Limited Electronics

Downloads

• Lockly Smart Phone App -- iPhone Here / Android Here
• Installation Guide
• User Manual
• Installation Template
• Spec Sheets
