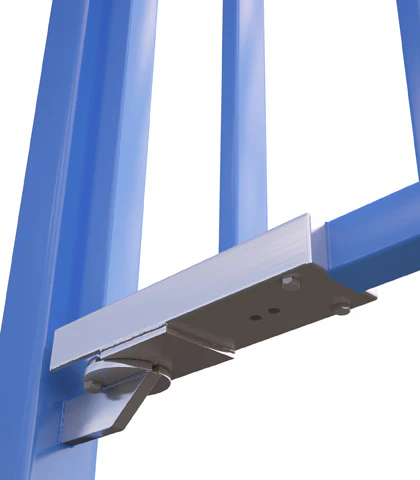

Lockey - TB950 - Magnum Gate Closer - Electro-Galvanized - (50-250 lbs)

TB950-MAGNUM

Features

• All-in-one closer and hinge system
• Self-closing
• Concealed, high use, pedestrian gate closer
• Tamper and vandal resistant
• Two speed adjustments: closing & latching
• Closes gates weighing between 50-250 lbs.
• Works with left and right hand gates
• No hold open
• Restrictor to avoid over opening
• Speed adjustments hidden from view
• 180 degree capable with 180 Drive Plate

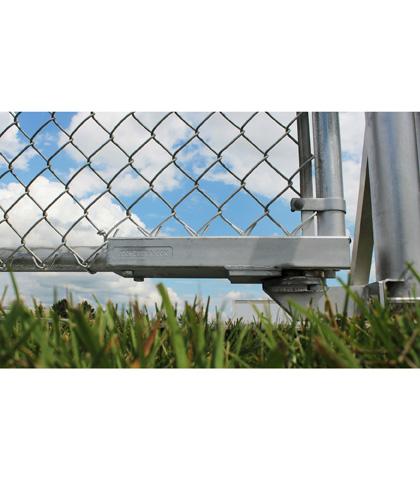

• Can be mounted on chain link with TB950-LINX



Specifications

MAX. GATE WEIGHT	50 - 250 lbs.
MAX. GATE WIDTH	48"
MAX GATE HEIGHT	78"
MAX OPENING ANGLE	90 Degrees; 180 Degrees w/ 180 Drive Plate
MIN. OPERATING TEMPERATURE	-40 Degrees Fahrenheit*
MAX. OPERATING TEMPERATURE	122 Degrees Fahrenheit*
TYPE OF GATE MATERIAL	Ornamental; Chain Link**
MATERIAL	Steel
FINISH	Electro-Galvanized
WARRANTY	10 Year

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
**In order to be mounted on chain link, a TB950-LINX is required (not included).

Downloads

• Installation Instructions
• Specifications Sheet
