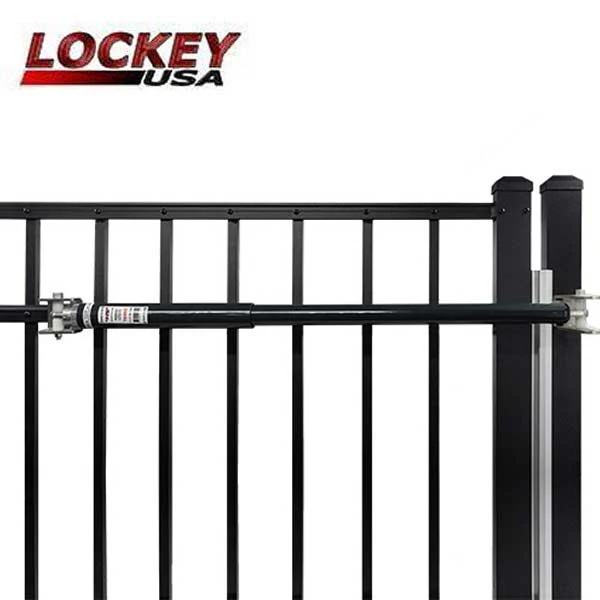

Lockey - TB650 - Adjustable Hydraulic Gate Closer - (150-250 lbs)

LK-TB650


Features

• Adjustable hydraulic (nitrogen gas) controlled closing speed
• Closes small and large gates from 150-250 lbs.
• Installs on top/middle/bottom
• Works with left and right hand gates
• Mounts on opening side of gate
• Pushes the gate closed
• Mounting brackets and fitting bar included
• Not compatible with gates less than 30 inches wide
• To retain product warranty & restrict gate opening angle, a gate stop must be installed



Specifications

GATE DIMENSIONS	Weight: 150-250 lbs. - Width: 44-72"
FINISHES AVAILABLE	Black; White; Grey
MAX. OPENING ANGLE	100 Degrees
OPERATING TEMPERATURES	Min: 15 Degrees Fahrenheit* Max: 122 Degrees Fahrenheit*
TYPE OF GATE MATERIAL	Vinyl; Steel; Wood; Chain Link**
CLOSING / LATCH METHOD	Hydraulic / Nitrogen Gas
MATERIAL	Steel
FINISH	PVC Coated
HINGE ARRANGEMENTS	In-line or Offset
OPENING PRESSURE	8 - 18 lbs.
WARRANTY	1 Year

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
**Gate Closer can be mounted on chain link with TB-LINX, sold separately.
