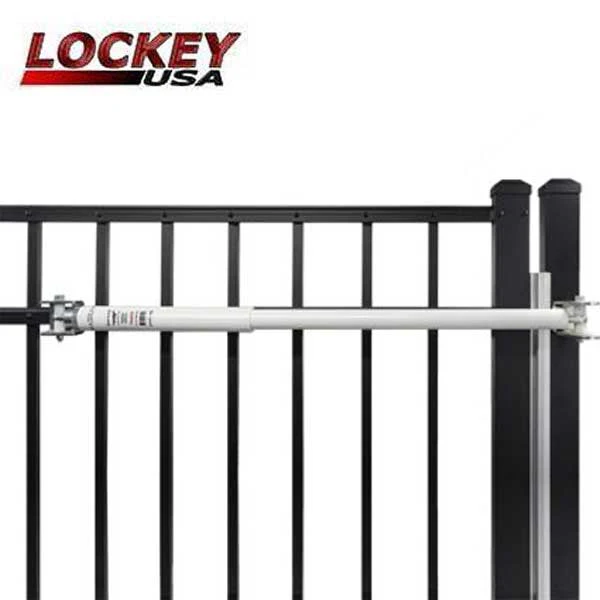

Lockey - TB250 - Adjustable Hydraulic Gate Closer - White (50-125 lbs) (ARCHIVE)

LK-TB250-W

Features

• Adjustable hydraulic (nitrogen gas) controlled closing speed
• Closes small and large gates from 50-125 lbs.
• Installs on top/middle/bottom
• Works with left and right-hand gates
• Mounts on the opening side of the gate
• Pushes the gate closed
• Mounting brackets and fitting bar included
• Not compatible with gates less than 30 inches wide

Specifications

GATE DIMENSIONS	Weight: 50-125 lbs. - Width: 36-52"
FINISHES AVAILABLE	White
MAX. OPENING ANGLE	100 Degrees
OPERATING TEMPERATURES	Min: 15 Degrees Fahrenheit* Max: 122 Degrees Fahrenheit*
TYPE OF GATE MATERIAL	Vinyl; Steel; Wood; Chain Link**
CLOSING / LATCH METHOD	Hydraulic / Nitrogen Gas
MATERIAL	Steel
FINISH	PVC Wrapped
HINGE ARRANGEMENTS	In-line or Offset
OPENING PRESSURE	3 - 7 lbs.
WARRANTY	1 Year

Note: To retain product warranty & restrict gate opening angle, a gate stop must be installed (not included).
*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
**In order to be mounted on chain link, a TB950-LINX is required (not included).

Videos

How to Install TB250 Gate Closer

How to Install TB250 Gate Closer on Chain Link

Downloads

Installation Instructions
Specifications Sheet
