Lockey - 2930-DC - Narrow Stile - Mechanical Keypad - Keyless Lock - Passage - Knob - Double Combination

LK-2930-DC

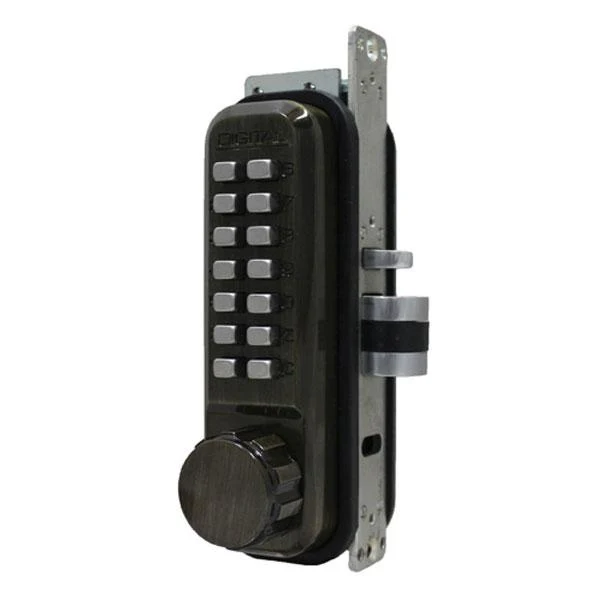

This is a Lockey 2930-DC Mechanical Keyless Narrow Stile Lock with Passage Function, Double Combination and Knob.

Features

• Keypad on both sides

• Locks automatically, now with passage function
• Mechanical, keyless, narrow stile lock
• One user code with thousands of possible combinations
• Replaces Adams-Rite style lock
• Knob on exterior
• Changeable handing
• 1 1/8” backset
• Ideal for sliding gates & aluminum storefront doors



Specifications

AVAILABLE FUNCTION	Passage
DIMENSIONS	5 5/8” L x 1 5/8” W x 1 5/8” D
FINISHES AVAILABLE	Antique Brass, Bright Brass, Bright Chrome, Jet Black, Marine Grade, Oil Rubbed Bronze, Satin Chrome, Satin Nickel, White
DOOR THICKNESS	1 3/16” to 2”, up to 5” with Extension Kit (Sold Separately)
BACKSET	1 1/8"
TOTAL COVERAGE WITH TRIM PLATES	6” L x 2” W
THROW	1 1/2”
MATERIAL	Five-ply laminated steel bolt Concealed hardened steel pin for maximum security
APPLICATION	Exterior & Interior Use Weather Resistant
WARRANTY	Lifetime Mechanical

Compatible With (Sold Separately)

• GB950 Gate Box
• GB2900 LINX Gate Box for Chain Link
• Key Override System
• Extension Kit
• Narrow Stile Mounting Tabs

Downloads

Instructions
Spec Sheet
