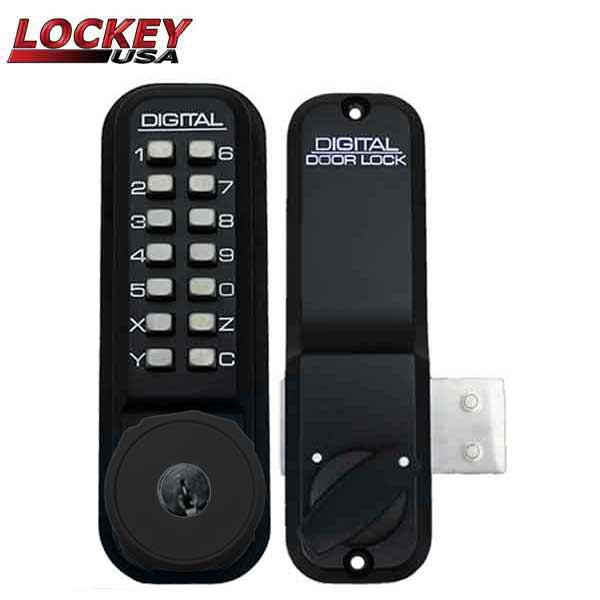

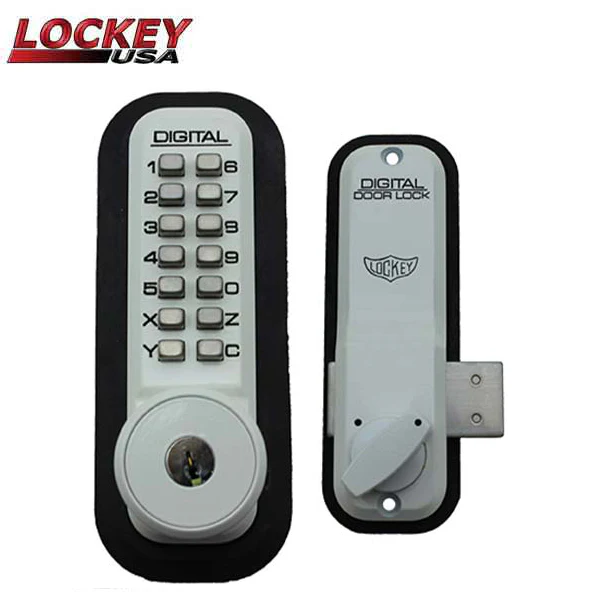

Lockey - 2200-KO - Narrow-Stile Mechanical Keypad Deadbolt Lock - Surface Mount - w/ Key Override - Schlage "C" Keyway - Optional Finish

Features

• Surface Mount Deadbolt
• Narrow Stile
• One user code with thousands of possible combinations
• Both long and short bar included
• Easy to change combination
• Changeable Handing
• Will lock any hinged configuration
• Schlage "C" Keyway
• 3 Keys included
• Products have different keying options available. Keyed Different (KD) is available for all, but Keyed Alike (KA) is only available for Jet Black finish.
• Oversized Knob (OSK) Available

Options

• Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black (JB), Satin Chrome (SC), Satin Nickel (SN), White (WH)
• Keying: This product comes with different keying options including Keyed Alike (KA) and Keyed Different (KD).

Dimensions & Specifications

• Dimensions: 5 5/8″ L x 1 5/8″ W x 1 5/8″ D
• Total Coverage with Trim Plates: 6″ x 2″
• Door Thickness: 1 3/16” to 2”
• Fits doors 1/8” thick and up with Thin Door Kit
• 2200 with Extension Kit: Fits doors up to 5” thick
• 2200KO with Extension Kit: Fits doors up to 3″ thick
• Short Throw Bar: 7/8″
• Long Throw Bar: 2 1/4″
• Material: Zinc-plated Steel with Teflon coated stainless steel interior components
• Keyed: Alike and Differently
• # of Keys provided: 3
• Lifetime Mechanical Warranty
• (Extension Kit sold separately)

Compatible With

• Key Override System
• Extension Kit
• Thin Door Kit
• T Cover 2500
• Metal Trim Plate
• Oversized Knob
• Push Pull Guard

Resources

• Download Instructions
• Download Spec Sheet

How to Change Code Video

Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Lockey directly at 888.395.0163 or visit their support page here.
