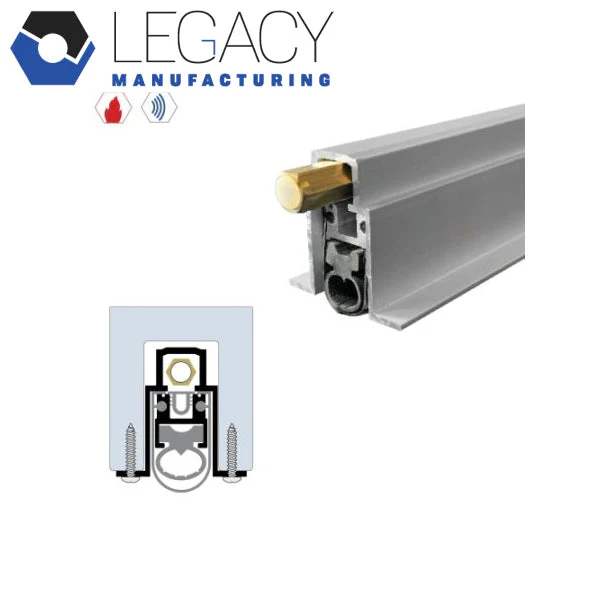

Legacy Manufacturing - 7963 - Concealed Automatic Door Bottom - 1-9/16" x 1-5/8" - Clear Anodized Aluminum - Optional Length

Legacy Manufacturing - 7963 - Concealed Automatic Door Bottom - 1-9/16" x 1-5/8" - Clear Anodized Aluminum - Optional Length

COMPETITOR EQUIVALENT


LEGACY NGP PEMKO ZERO
7963 – – 369AA
    FINISHES
    • CA – Clear Anodized
    OPTIONS
    • EA – Electrical Actuator
    • FL – Fire Label
    • FX – Integral Intumescent
    • PULL – Pull
    • PV – Pivot Doors
    • SF – Security Fasteners
    • MB-EC – Matte Black End Cap
    FEATURES
    • Can be made any size from 12" to 144".
    • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
    • 5 million cycles tested.
    MATERIALS / SPECIFICATIONS
    • Solid Rubber Extrusion is Black
    • Aluminum is Clear Anodized
    • Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
    • Brass Hex Nut
    • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
    • Self-leveling door seal up to maximum 7/8" drop.
    • Replacement neoprene – Part #4563N and Jacket – Part #4763N
    • Unit supplied standard with 1 pair of end caps – Part #4063EC-AP.

    Downloads:

    Select Length
    Select Option
    From $50.62

    Original: $144.64

    -65%
    Legacy Manufacturing - 7963 - Concealed Automatic Door Bottom - 1-9/16" x 1-5/8" - Clear Anodized Aluminum - Optional Length—

    $144.64

    $50.62

    Product Information

    Shipping & Returns

    Description

    COMPETITOR EQUIVALENT


    LEGACY NGP PEMKO ZERO
    7963 – – 369AA
      FINISHES
      • CA – Clear Anodized
      OPTIONS
      • EA – Electrical Actuator
      • FL – Fire Label
      • FX – Integral Intumescent
      • PULL – Pull
      • PV – Pivot Doors
      • SF – Security Fasteners
      • MB-EC – Matte Black End Cap
      FEATURES
      • Can be made any size from 12" to 144".
      • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
      • 5 million cycles tested.
      MATERIALS / SPECIFICATIONS
      • Solid Rubber Extrusion is Black
      • Aluminum is Clear Anodized
      • Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
      • Brass Hex Nut
      • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
      • Self-leveling door seal up to maximum 7/8" drop.
      • Replacement neoprene – Part #4563N and Jacket – Part #4763N
      • Unit supplied standard with 1 pair of end caps – Part #4063EC-AP.

      Downloads:
