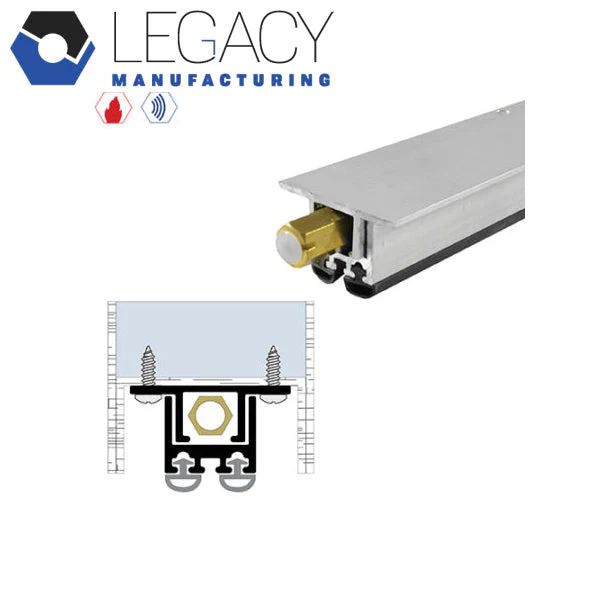

Legacy Manufacturing - 7553MA - Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length

Legacy Manufacturing - 7553MA - Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length

COMPETITOR EQUIVALENT


LEGACY NGP PEMKO ZERO
7553-LIG – – –
    FINISHES
    • MA – Mill Aluminum
    OPTIONS
    • EA – Electrical Actuator
    • FL – Fire Label
    • LIG – Ligature Resistant
    • LS – Light Spring
    • PULL – Pull
    • PV – Pivot Doors
    • SF – Security Fasteners
    • SL – Sliding Doors
    • TD – Top Door Installation
    FEATURES
    • Can be made any size from 12" to 144".
    • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
    • 5 million cycles tested.
    MATERIALS / SPECIFICATIONS
    • Solid Rubber Extrusion is Black.
    • Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
    • Brass Hex Nut
    • With the Ligature Resistant option, our products have a non-removable adjusting-activating nut.
    • For use on 1-3/4" and larger Hollow Metal doors
    • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
    • Self-leveling door seal up to maximum 1/2" drop.
    • Replacement neoprene – Part #4075N
    • No end caps provided

    Downloads:

    Select Length
    Select Option
    From $26.20

    Original: $74.86

    -65%
    Legacy Manufacturing - 7553MA - Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length—

    $74.86

    $26.20

    Product Information

    Shipping & Returns

    Description

    COMPETITOR EQUIVALENT


    LEGACY NGP PEMKO ZERO
    7553-LIG – – –
      FINISHES
      • MA – Mill Aluminum
      OPTIONS
      • EA – Electrical Actuator
      • FL – Fire Label
      • LIG – Ligature Resistant
      • LS – Light Spring
      • PULL – Pull
      • PV – Pivot Doors
      • SF – Security Fasteners
      • SL – Sliding Doors
      • TD – Top Door Installation
      FEATURES
      • Can be made any size from 12" to 144".
      • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
      • 5 million cycles tested.
      MATERIALS / SPECIFICATIONS
      • Solid Rubber Extrusion is Black.
      • Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
      • Brass Hex Nut
      • With the Ligature Resistant option, our products have a non-removable adjusting-activating nut.
      • For use on 1-3/4" and larger Hollow Metal doors
      • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
      • Self-leveling door seal up to maximum 1/2" drop.
      • Replacement neoprene – Part #4075N
      • No end caps provided

      Downloads:
