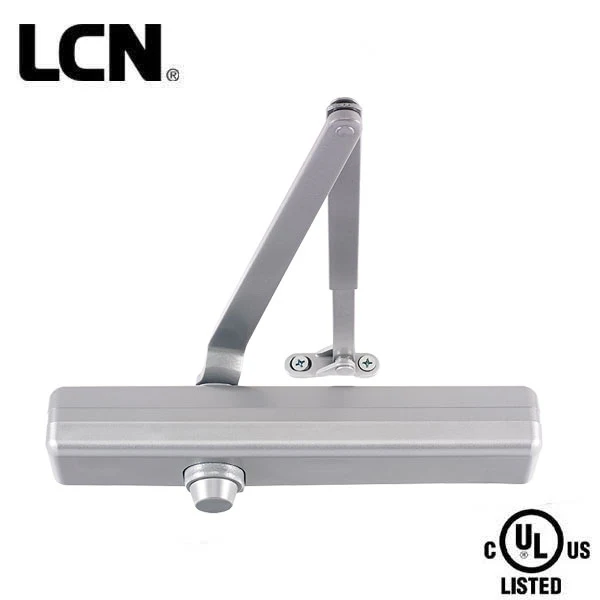

LCN - 1461 - Hydraulic Door Closer - PA Bracket/Hinge/Top Jamb - Adjustable Size 1-5 - Plastic Cover - Aluminum - Grade 1
The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements.
It installs quickly, accurately and offers a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.
Features include a slim line plastic cover, with optional plated finish on the cover, the arm and the fasteners. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of spring power adjustments.
More Information Below
Ā
| Specifications | |
|---|---|
| Body Construction | Cast iron cylinder with full-complement bearing 1-1/4" diameter piston Heat-treated steel pinion journal |
| Fluid | All-weather fluid |
| Handing | Non-Handed |
| Templating | Peel-n-stick templates -Ā 3/4" x 9-1/16" mounting hole pattern |
| Size | Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0" |
| Warranty | 30 years |
| Cover | Slimline plastic cover, optional |
| Fasteners | Self reaming and tapping screws (SRT) |
| Mounting | Hinge (pull side), top jamb (push side), parallel arm (push side) |
| Arms | RW/PA = Regular Arm with Parallel Arm Bracket |
| Finish | Aluminum |
| Butt hinges | Should not exceed 5" (127 mm) in width |
| Auxiliary stop | Recommended at hold open point or where a door cannot swing 180Ā° |
| Reveal | Should not exceed 3/4" (19 mm) for regular armor 1/2" (13 mm) for Hold Open Arm |
| Top rail | Less than 2-1/2"Ā (64 mm) requires plate, 1260-18 |
| Clearance | 2-7/8" (73 mm) behind door required for installation |
