LAB - .005 - Universal Bottom Flat Pins - Vial of 150

LAB-BP

These are LAB .005 Universal Bottom Flat Pins.

The most accurate universal pins made, always within .001″ of any manufacturers pin length. Use with the confidence of Original Pins.

Features

• FLAT CENTER with precision chamfer, nose, finish and length
• Color–Coded to Lock Industry Standards
• Precision Machined to exceed industry standards
• Nose designed to decrease key insertion forces
• Bottom Flats: .150 - .300

• Sold in Vials of 150

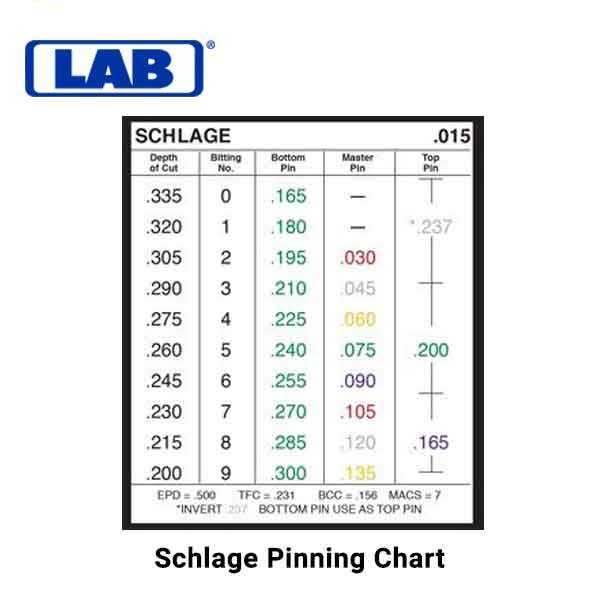

Common Pins Table

	Schlage	Kwikset	Weiser
#0	.165		.170
#1	.180	.170	.185
#2	.195	.195	.205
#3	.210	.220	.220
#4	.225	.240	.240
#5	.240	.265	.260
#6	.255	.285	.275
#7	.270		.295
#8	.285		.310
#9	.300		.330



Pin Color Code Chart

0.115	PLAIN
0.12	PURPLE
0.125	SILVER
0.13	GREEN
0.135	RED
0.14	PLAIN
0.145	PURPLE
0.15	SILVER
0.155	GREEN
0.16	RED
0.165	PLAIN
0.17	PURPLE
0.175	SILVER
0.18	GREEN
0.185	RED
0.19	PLAIN
0.195	PURPLE
0.2	SILVER
0.205	GREEN
0.21	RED
0.215	PLAIN
0.22	PURPLE
0.225	SILVER
0.23	GREEN
0.235	RED
0.24	PLAIN
0.245	PURPLE
0.25	SILVER
0.255	GREEN
0.26	RED
0.265	PLAIN
0.27	PURPLE
0.275	SILVER
0.28	GREEN
0.285	RED
0.29	PLAIN
0.295	PURPLE
0.3	SILVER
0.305	GREEN
0.31	RED
0.315	PLAIN
0.32	PURPLE
0.325	SILVER
0.33	GREEN
0.335	RED
0.34	PLAIN
0.345	PURPLE
0.35	SILVER
0.355	GREEN
0.36	RED
